2002 Toyota Tundra Wheels & Rims

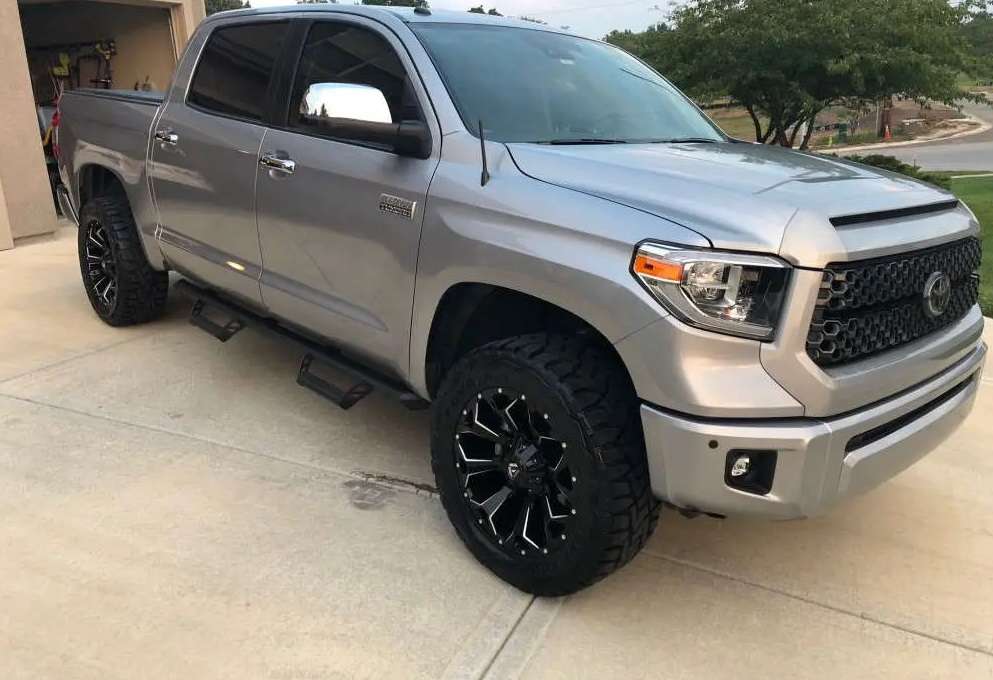

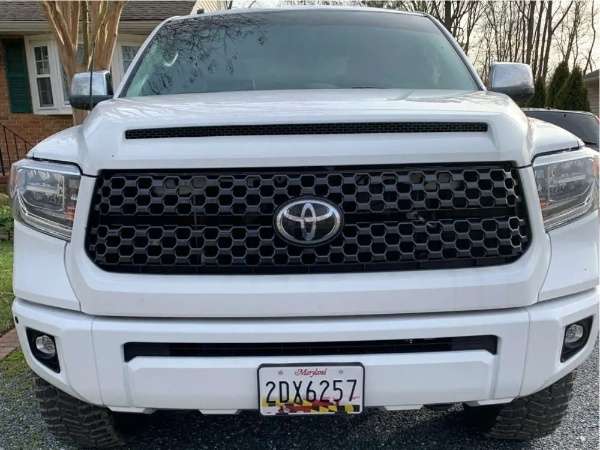

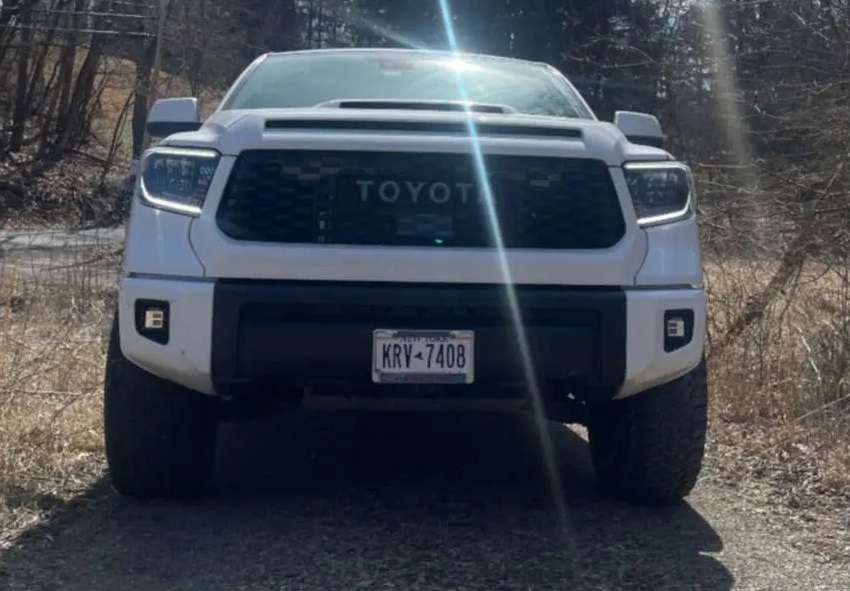

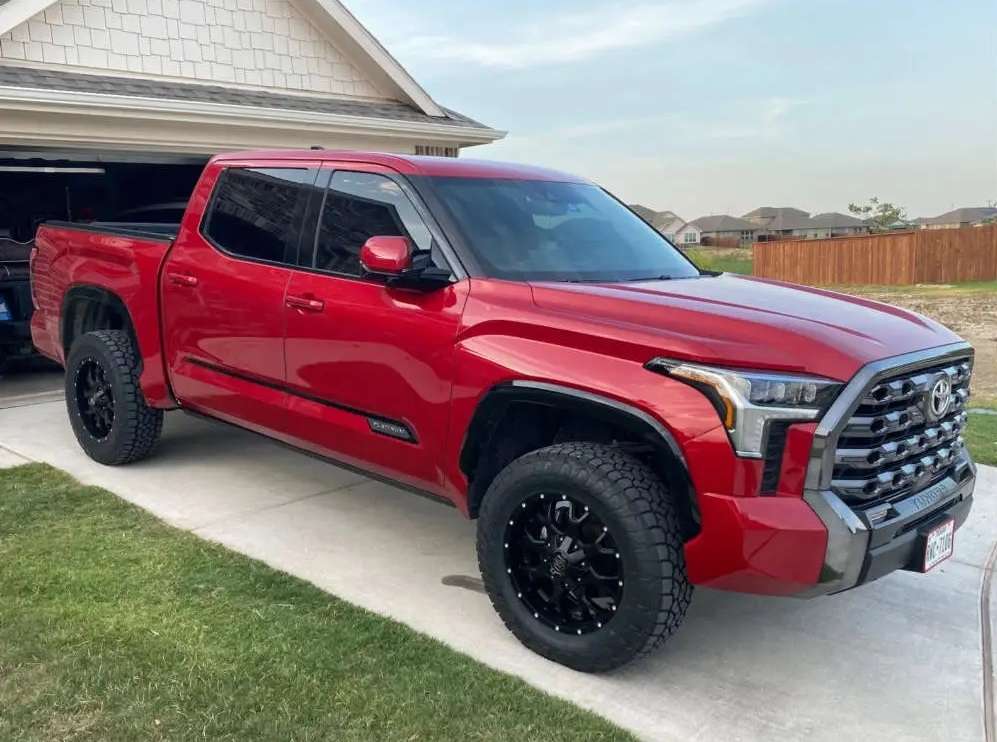

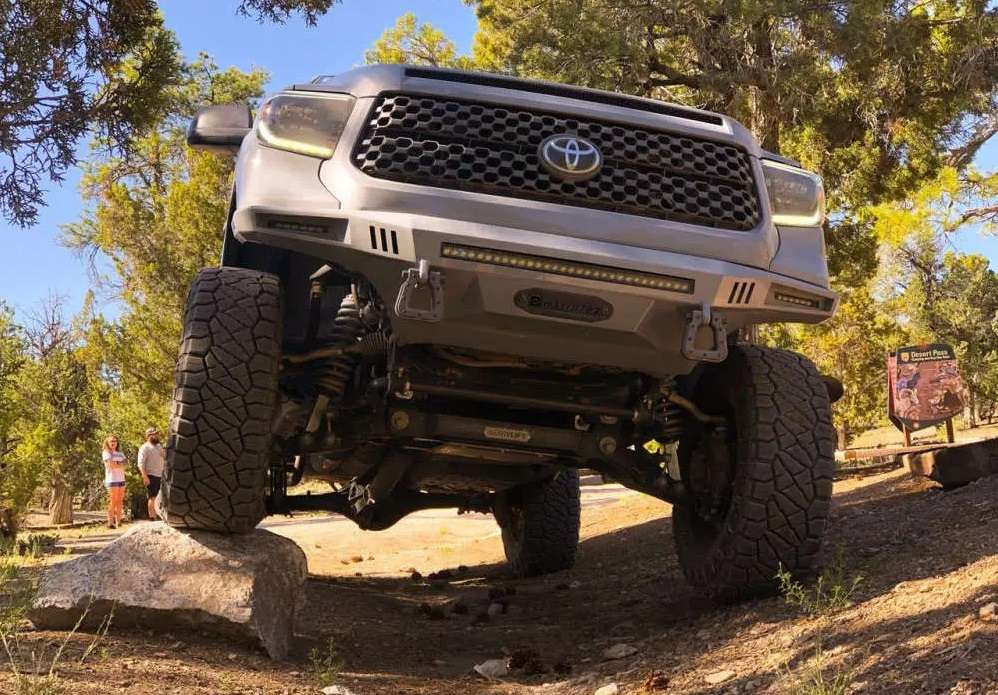

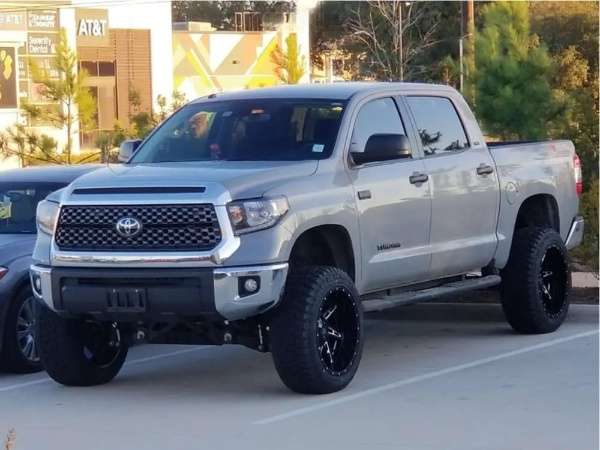

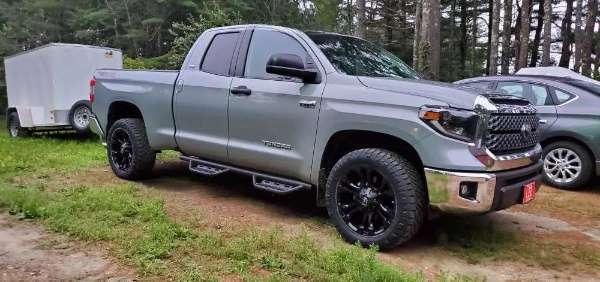

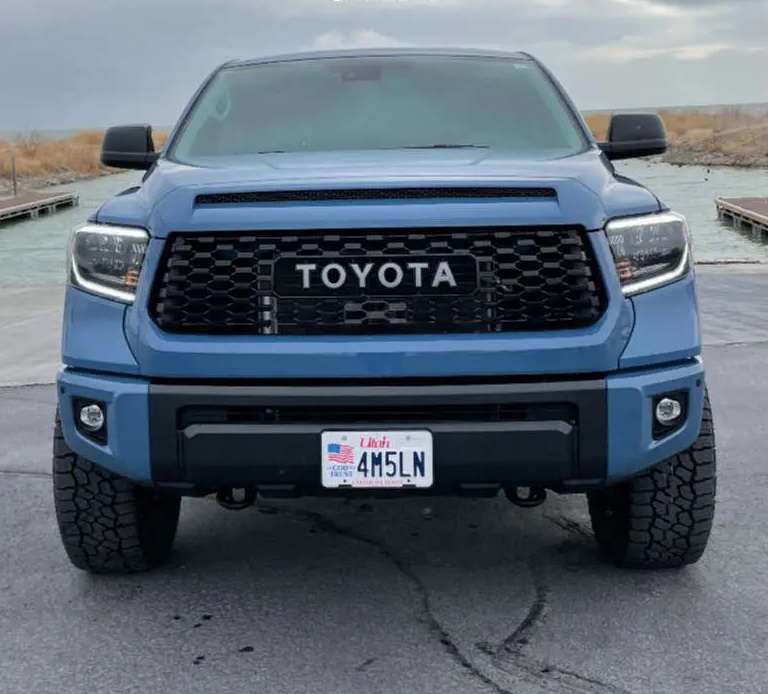

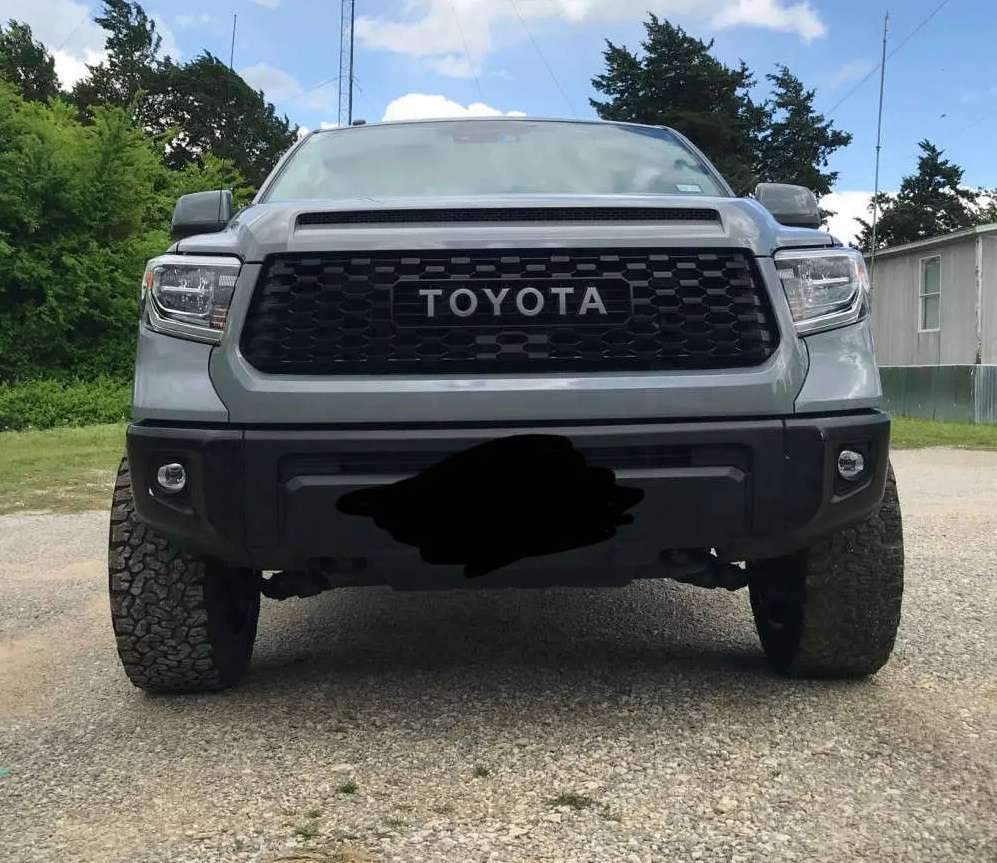

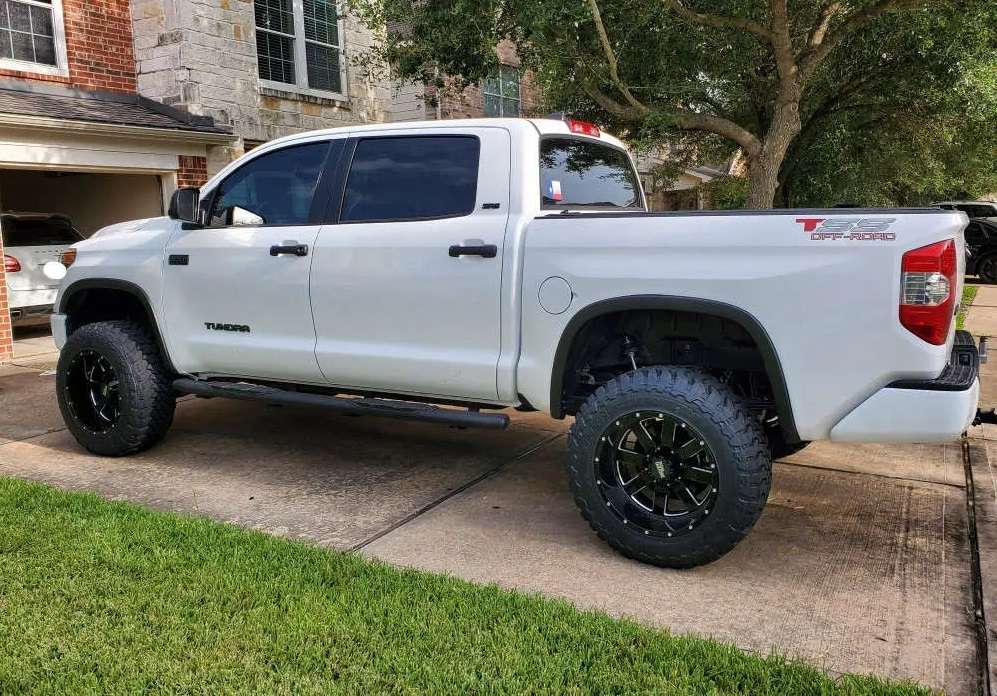

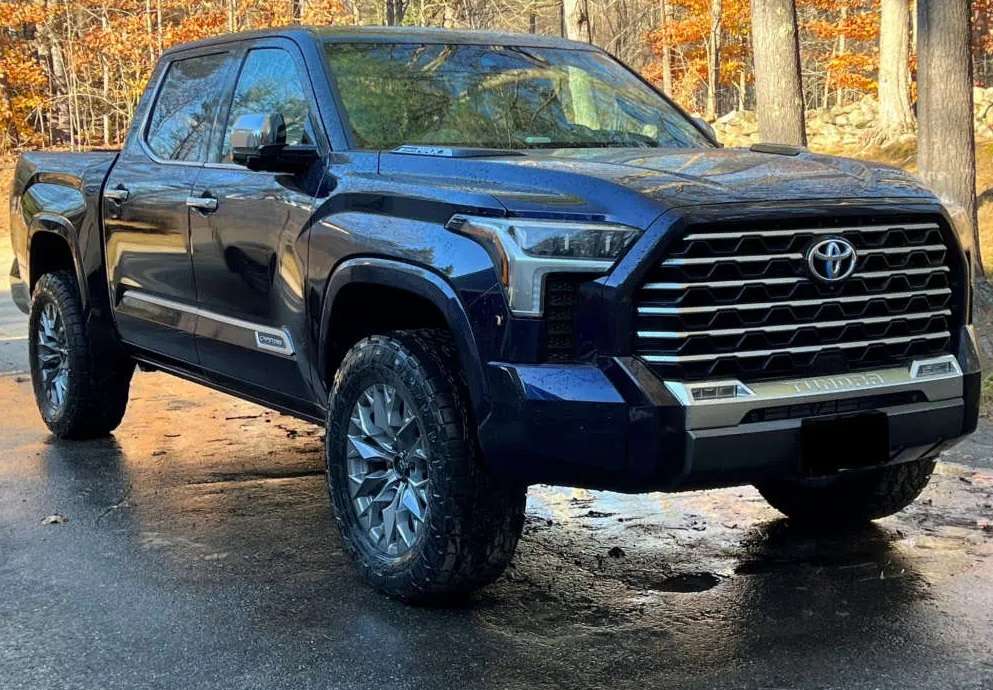

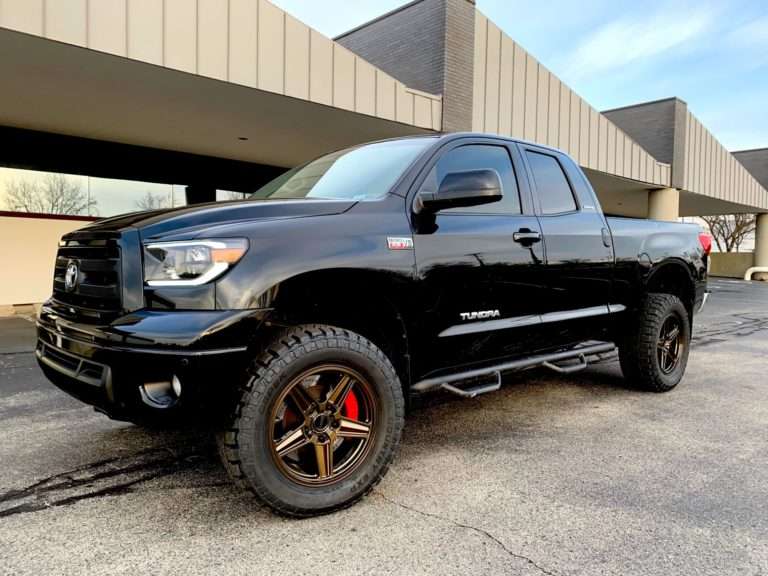

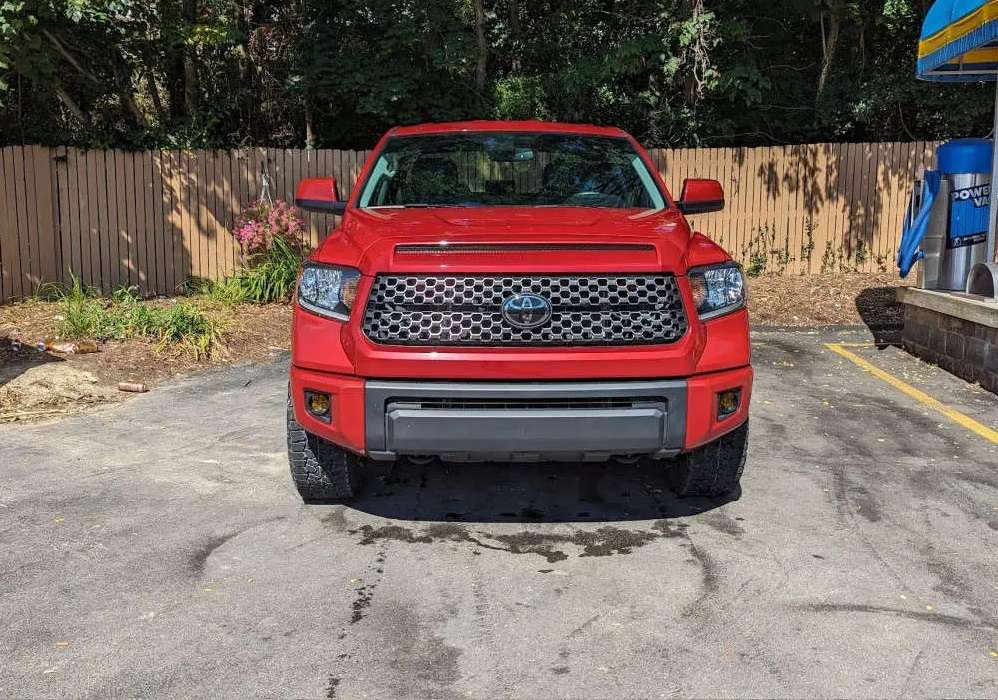

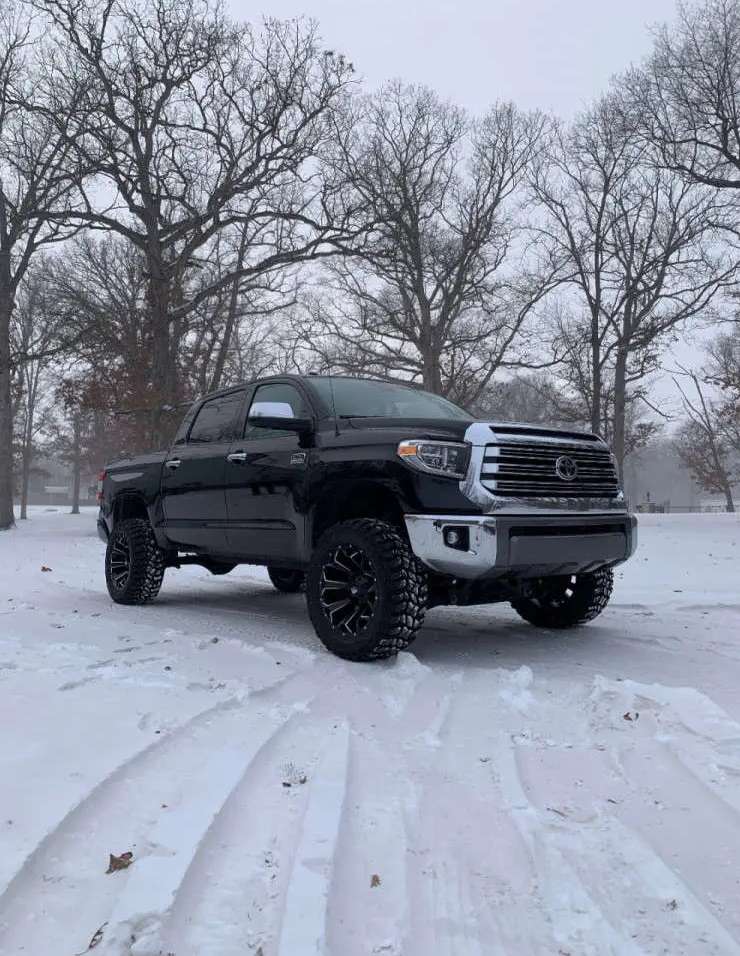

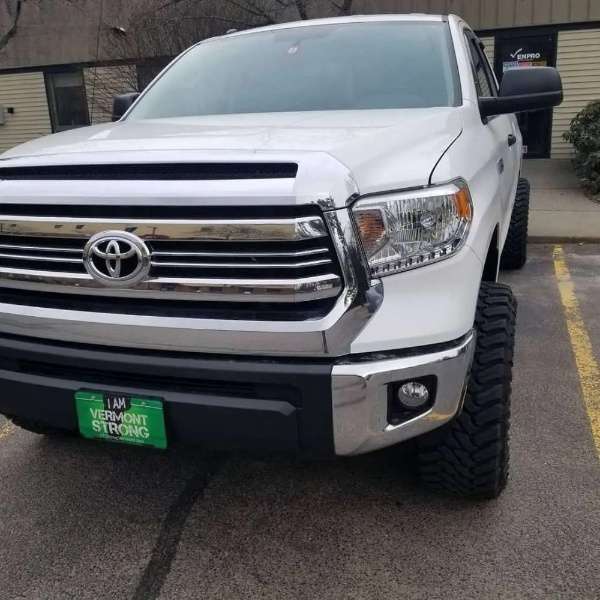

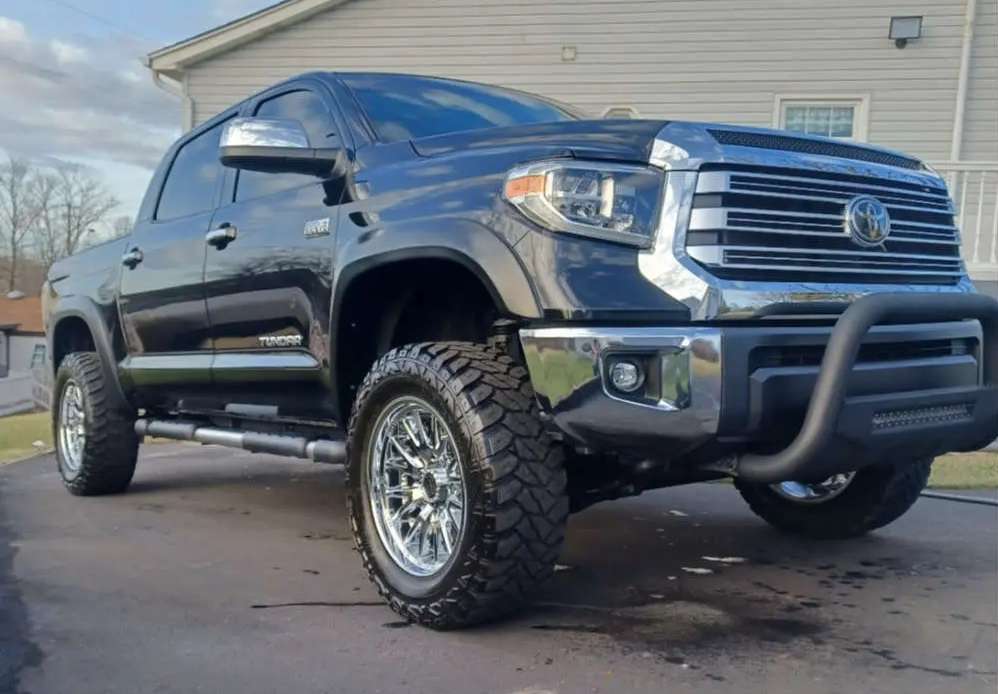

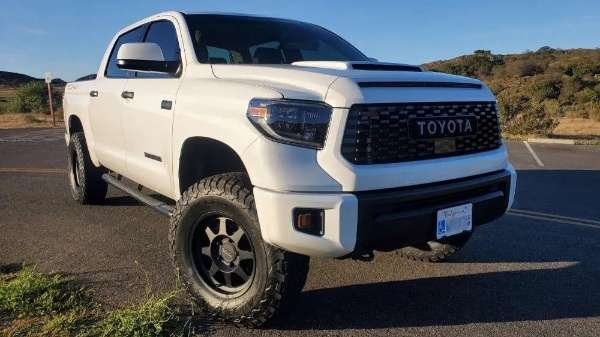

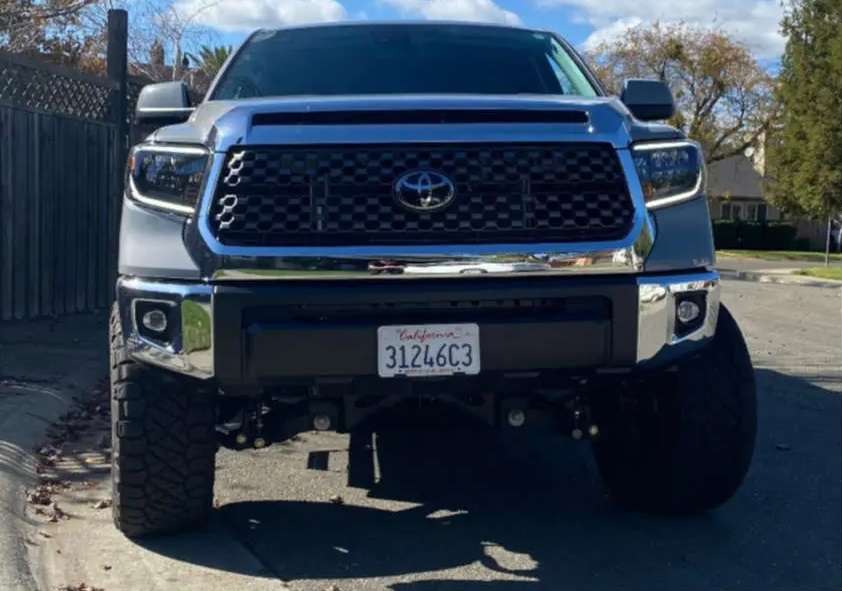

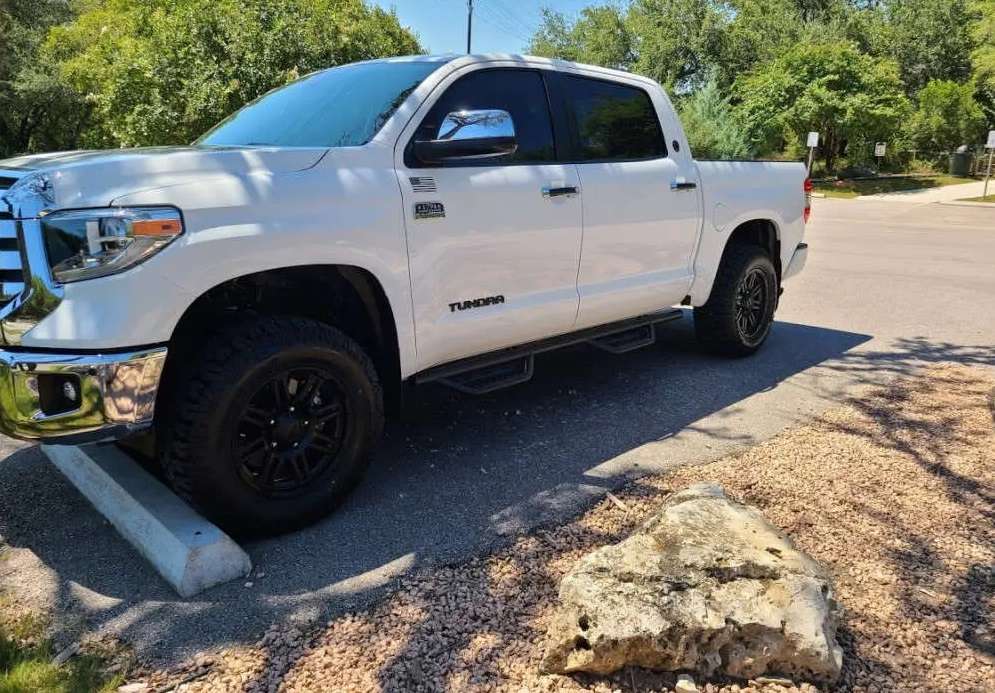

2002 Toyota Tundra Wheel Gallery — See It On Your Car
Real Toyota Tundra builds and AI-rendered fitment previews. Visualize any wheel on your Tundra with our free wheel visualizer before you buy.
Shop Wheels for 2002 Toyota Tundra
Showing 8 of 8+ wheels compatible with the 2002 Toyota Tundra
The 2002 Toyota Tundra Base, Limited, and SR5 trims all roll on a 16x7 stock wheel with a 6x139.7 bolt pattern. Finding the right upgrade has never been easier. ThreePiece.us stocks wheels from Vision, Work Wheels, Fuel 1PC, OE Wheels, Carolina Forged, LOCK OFFROAD, Enkei, and Icon Alloys—all verified to bolt on perfectly. Every wheel ships free throughout the lower 48 states.
Whether you're looking to stick with 16-inch or step up to 17, 18, 19, or 20-inch sizes, we have options that fit your Tundra's 6x139.7 bolt pattern. Our inventory ranges from conservative to aggressive fitments, so you can customize your truck exactly how you want it. Browse our selection knowing that every wheel you see is guaranteed compatible and ready to ship.
2002 Toyota Tundra Wheel Fitment Guide — What Works & What to Avoid
The 2002 Toyota Tundra rolls on a 6x139.7 bolt pattern and comes stock with a 16x7 wheel at a 14mm offset. You can step up to 16x8, 17-inch options ranging from 17x7.5 to 17x8.5, or go bigger with 18-inch and 19-inch widths up to 8.5 inches wide. A 20x10 is also compatible, giving you solid sizing flexibility without sacrificing drivability.
All wheels for this truck must match the 6x139.7 bolt pattern—nothing else will fit. The hub-centric bore measures 106.1mm, so if your wheel's center bore runs larger, you'll need hub-centric rings to ensure proper fitment and balance. Avoid excessively wide or aggressive offsets that push the tire too far outboard, as this risks rubbing the fender and suspension components during articulation.
Every wheel we list is guaranteed to bolt on and ships free to the lower 48 states. We stock Vision, Work Wheels, Fuel 1PC, OE Wheels, Carolina Forged, LOCK OFFROAD, Enkei, and Icon Alloys in sizes that fit your Tundra.
2002 Toyota Tundra Wheel Fitment Specifications
The 6x139.7 bolt pattern determines which wheels physically bolt onto your truck, while the 106.1mm center bore ensures a hub-centric fit. The factory equips this truck with 16x7 wheels at a +14 offset.
Lug Type
nut
Thread Size
M12x1.5
Torque Spec
81 ft-lbs
TPMS
Yes
2002 Toyota Tundra Compatible Wheel Sizes
| Wheel Size | Offset Range | Compatible Tires | Notes |
|---|---|---|---|
| 20x10 | -5 to +20 | 275/50R20, 295/45R20 | 2. Body Modification Required |
| 22x10 | -5 to +20 | 285/40R22 | 2. Body Modification Required |
| 16x7 | -5 to +25 | 265/70R16, 245/70R16, 265/75R16 | — |
| 17x7.5 | -5 to +20 | 275/65R17, 265/65R17, 275/60R17 | — |
| 16x8 | -5 to +15 | 265/70R16, 245/70R16, 265/75R16 | — |
| 17x8 | -5 to +20 | 275/65R17, 265/65R17, 275/60R17 | — |
| 18x8 | -5 to +20 | 275/55R18, 275/60R18 | — |
| 19x8 | -5 to +20 | 275/55R19, 265/55R19 | — |
| 17x8.5 | -5 to +20 | 275/65R17, 265/65R17, 275/60R17 | — |
| 18x8.5 | -5 to +20 | 275/55R18, 275/60R18, 285/60R18 | — |
| 19x8.5 | -5 to +20 | 275/55R19, 265/55R19 | — |
| 20x8.5 | -5 to +10 | 265/50R20, 275/50R20 | — |
| 20x9 | -5 to +20 | 265/50R20, 275/50R20 | — |
| 22x9 | -5 to +20 | 265/40R22 | — |
| 20x9.5 | -5 to +20 | 275/50R20, 295/45R20 | 2. Body Modification Required |
| 22x9.5 | -5 to +20 | 285/40R22, 265/40R22 | 2. Body Modification Required |
Best Wheel Brands for the Toyota Tundra
- Fuel 1PC — Maverick, Assault, Blitz
- Fuel Forged — FF12, FF19
- Method Race Wheels — MR305, MR701
- American Racing — AR924, VN507
- Heritage Wheel
