2010 Mazda RX-8 Wheels & Rims

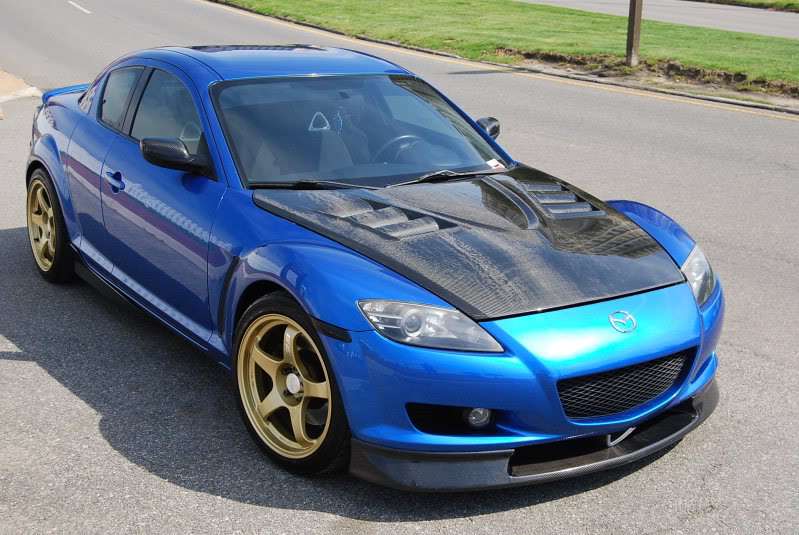

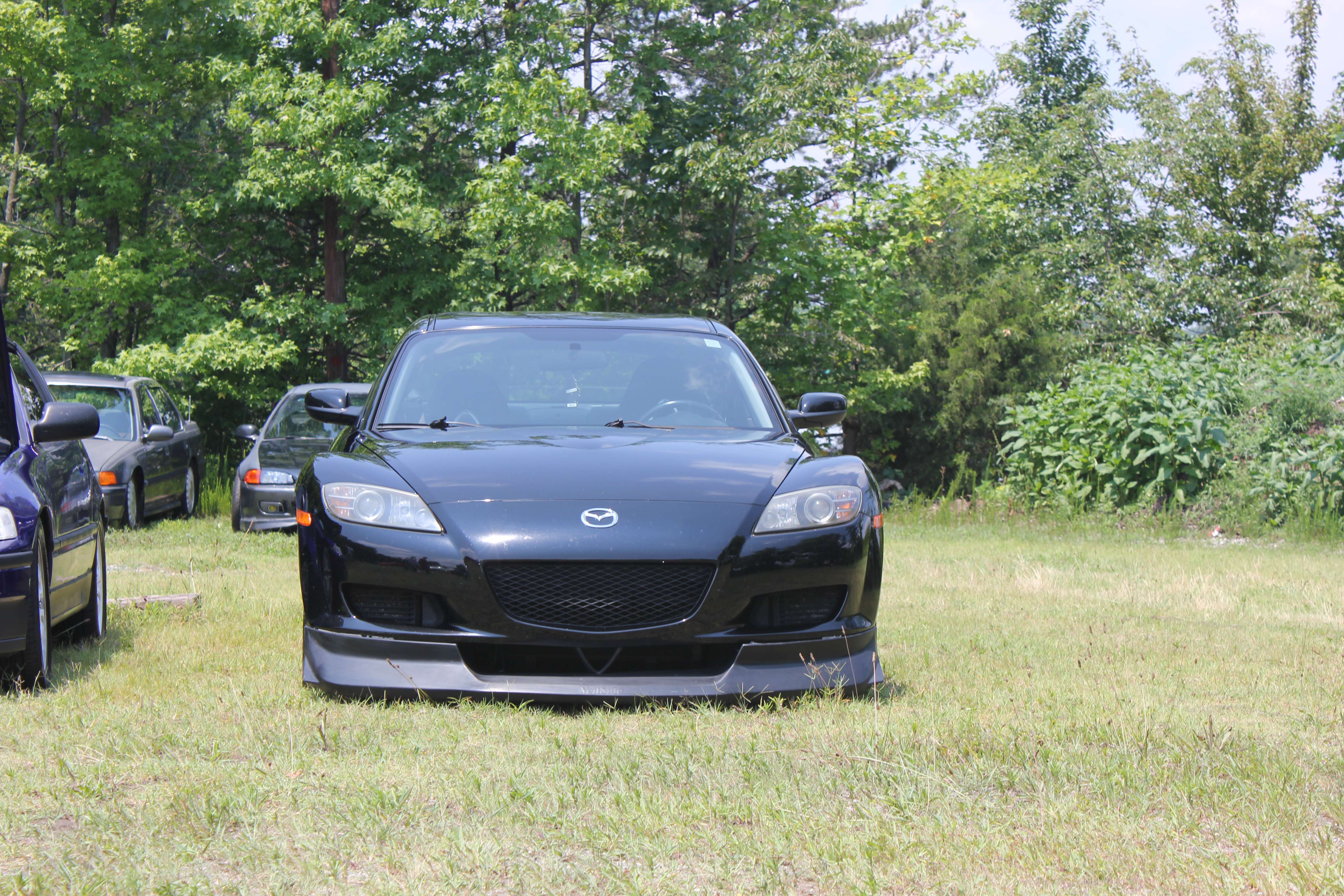

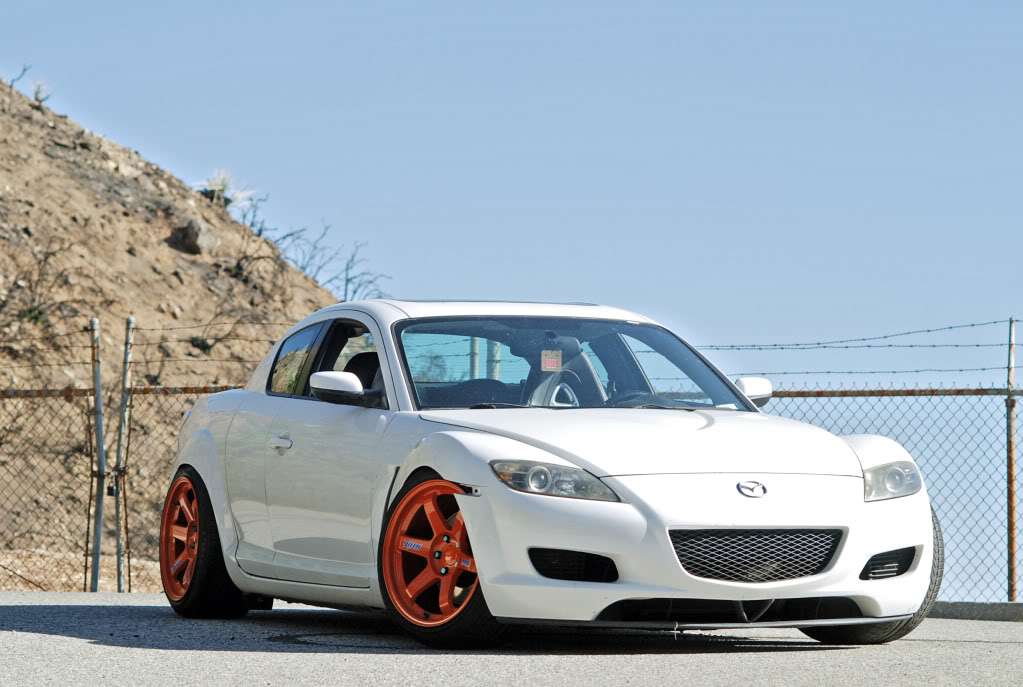

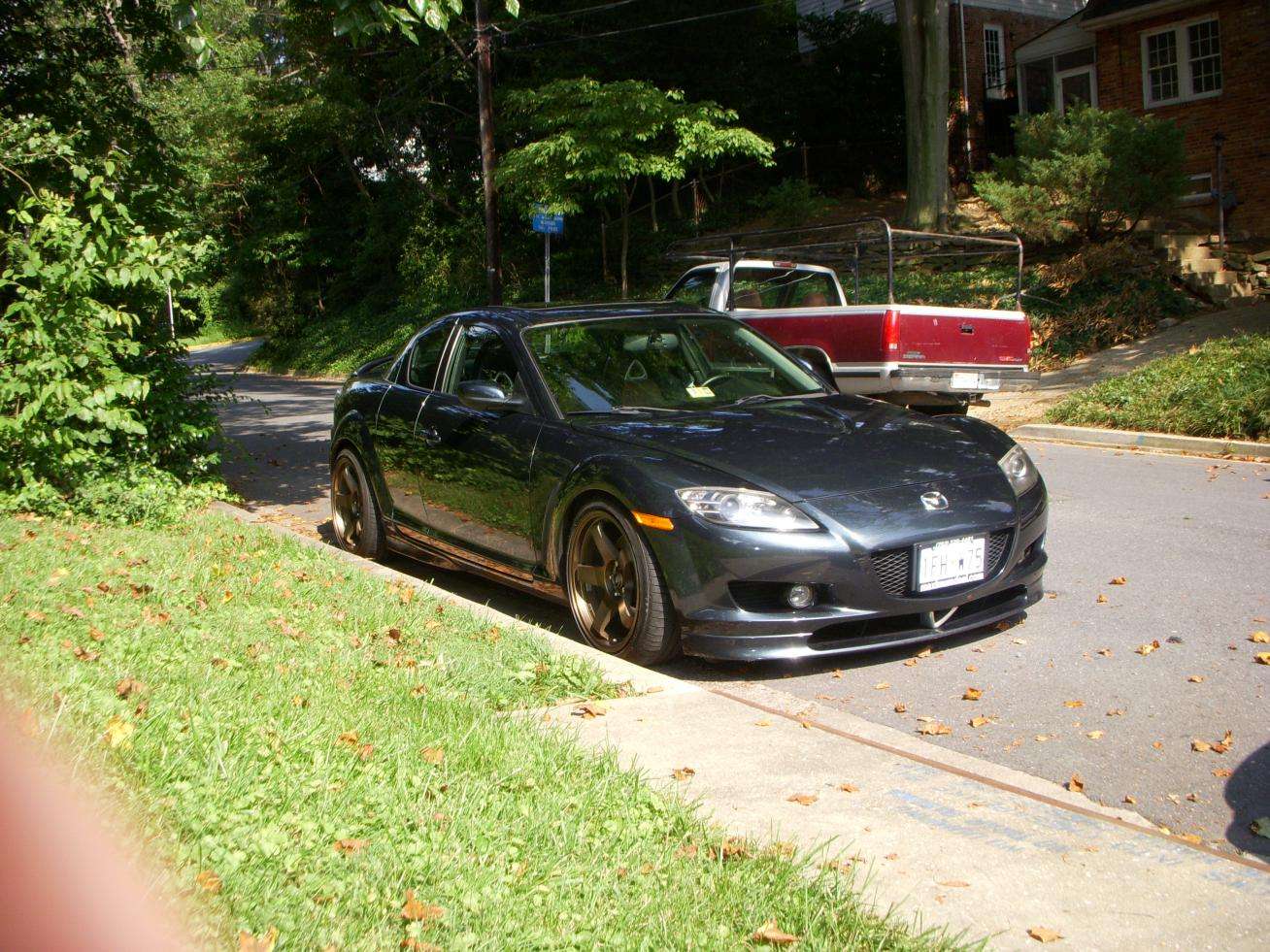

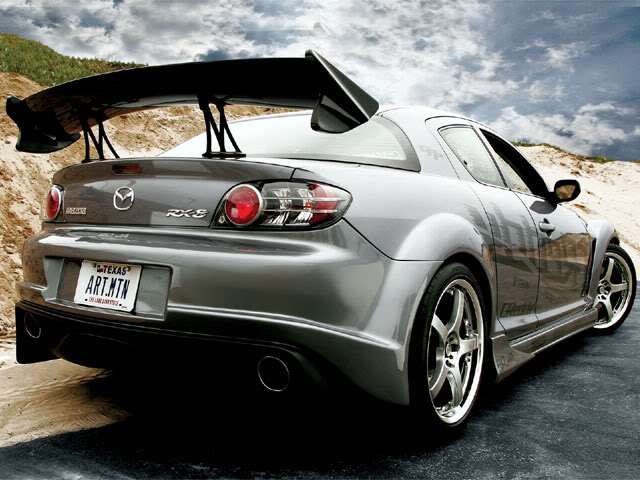

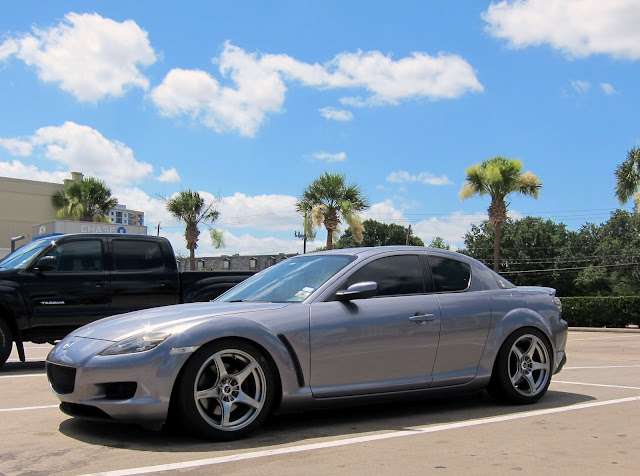

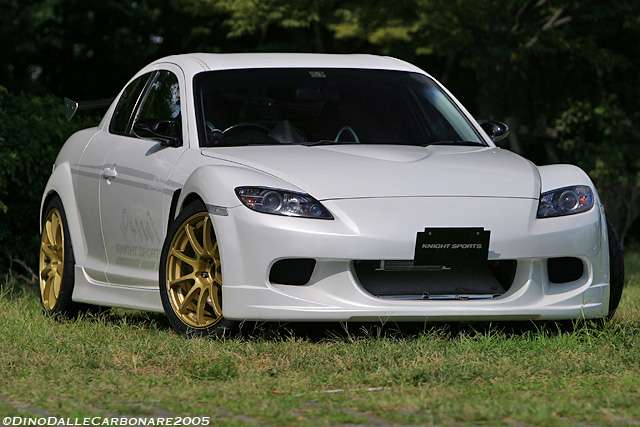

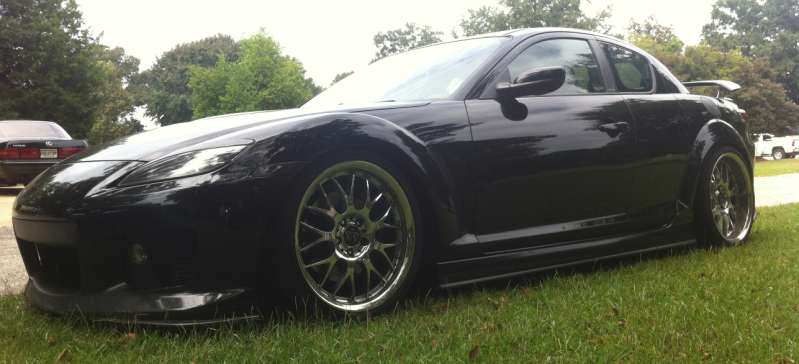

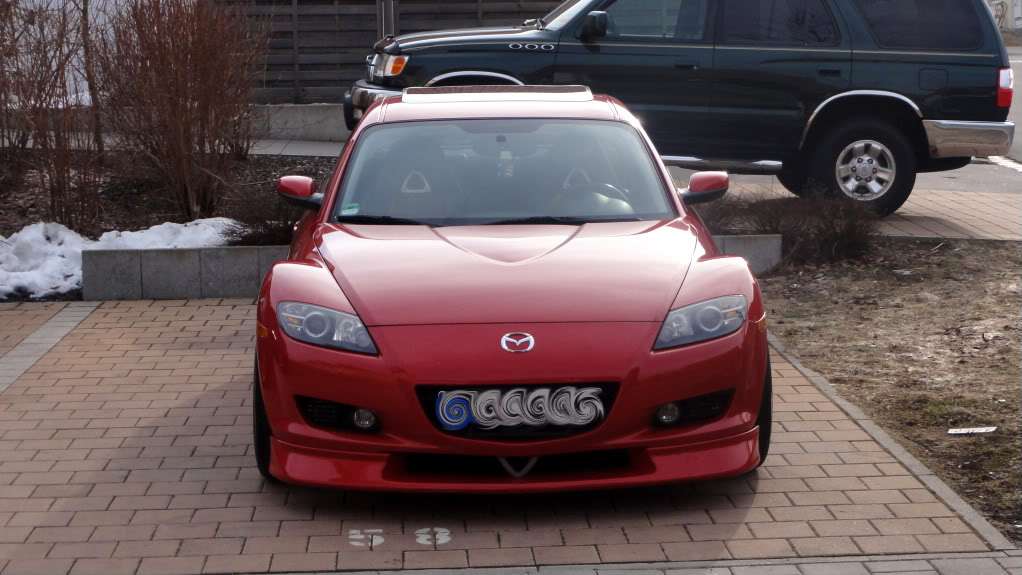

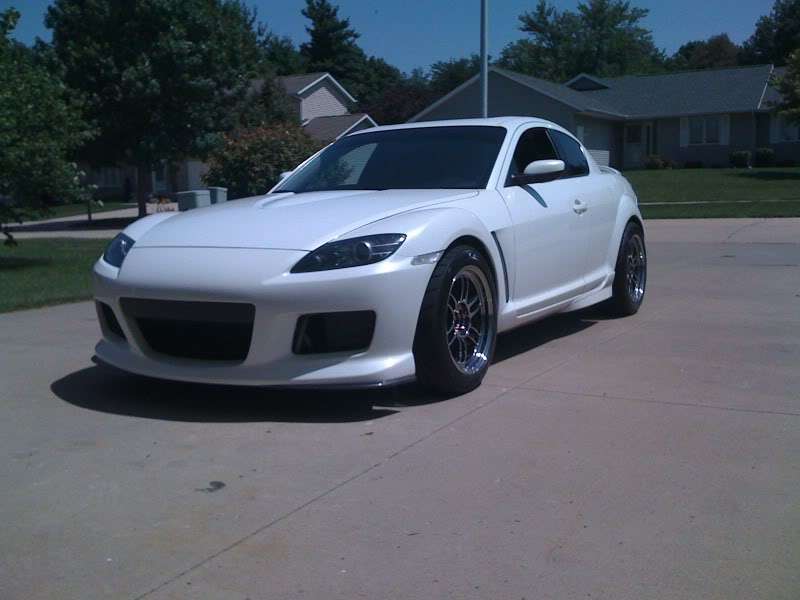

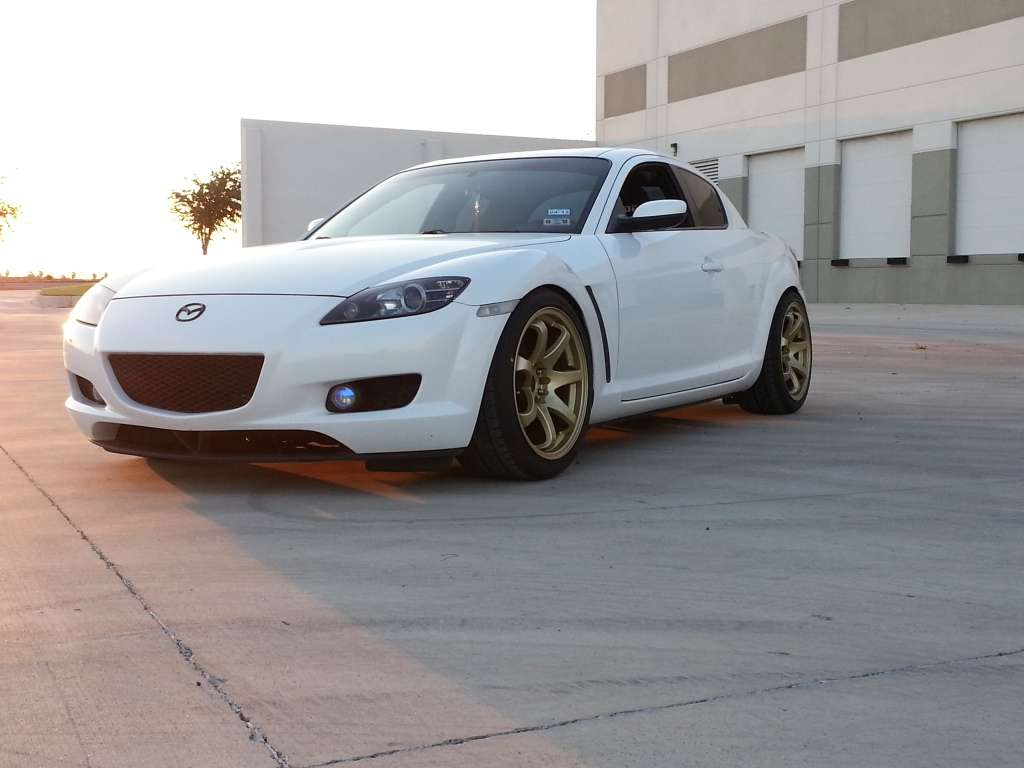

2010 Mazda RX-8 Wheel Gallery — See It On Your Car
Real Mazda RX-8 builds and AI-rendered fitment previews. Visualize any wheel on your RX-8 with our free wheel visualizer before you buy.
Shop Wheels for 2010 Mazda RX-8
Showing 8 of 8+ wheels compatible with the 2010 Mazda RX-8
The 2010 Mazda RX-8 GT, Grand Touring, R3, and Sport models all share the same 5x114.3 bolt pattern, making wheel upgrades straightforward. Your RX-8 rolled off the lot with 18x8 wheels, and we've verified every option in our inventory to bolt on perfectly. Choose from sizes ranging from 17x7 up to 19x10, with premium brands like BBS, Work Wheels, Enkei, and Gram Lights ready to ship free to the lower 48 states.
Aodhan, Heritage Wheel, Vors, Black Rhino, and more round out our extensive selection for your RX-8. Whether you're after a subtle refresh or a dramatic stance upgrade, we've got the fitment data locked down so you can shop with confidence. Every wheel ships free, and we stand behind our bolt-on guarantee—no surprises, just quality wheels that fit your rotary-powered Mazda.
2010 Mazda RX-8 Wheel Fitment Guide — What Works & What to Avoid
Your 2010 Mazda RX-8 GT, Grand Touring, R3, or Sport bolts wheels on with a 5x114.3 pattern. The stock setup runs 18x8 at a 45 offset. You can fit anything from 17x7 up through 19x10, giving you flexibility across multiple widths and diameters without worrying about staggered versus square setups.
Keep in mind that only the 5x114.3 bolt pattern will work on this Mazda—nothing else threads on. Your hub has a 67.1mm center bore, so use hub-centric rings if your wheel's bore measures larger. Aggressive widths or extreme offsets risk rubbing the fenders or suspension components, so stay conservative when pushing toward the wider options available.
Every wheel we list for your RX-8 is verified to bolt on and ships free to the lower 48 states. Aodhan, Work Wheels, Enkei, BBS, and Heritage Wheel are all in stock and ready to ship now.
2010 Mazda RX-8 Wheel Fitment Specifications
The 5x114.3 bolt pattern determines which wheels physically bolt onto your car, while the 67.1mm center bore ensures a hub-centric fit. The factory equips this car with 18x8 wheels at a +45 offset.
Lug Type
nut
Thread Size
M12x1.5
Torque Spec
81 ft-lbs
TPMS
Yes
2010 Mazda RX-8 Compatible Wheel Sizes
| Wheel Size | Offset Range | Compatible Tires | Notes |
|---|---|---|---|
| 17x7 | +35 to +48 | 225/50R17, 215/55R17 | — |
| 17x7.5 | +35 to +48 | 225/50R17, 215/55R17 | — |
| 18x7.5 | +34 to +46 | 225/45R18 | 1. Check fitment, possible clearance issues |
| 19x7.5 | +35 to +45 | 225/40R19 | — |
| 17x8 | +35 to +45 | 225/50R17, 215/55R17 | — |
| 18x8 | +35 to +45 | 225/45R18 | — |
| 19x8 | +35 to +45 | 225/40R19, 235/35R19 | — |
| 18x8.5 | +35 to +45 | 225/45R18 | — |
| 19x8.5 | +38 to +45 | 225/40R19, 235/35R19 | — |
| 20x8.5 | +35 to +45 | 245/30R20 | — |
Best Wheel Brands for the Mazda RX-8
- Work Wheels — Meister, Emotion, Equip, CR Kiwami
- Volk Racing — TE37, CE28, ZE40
- SSR — Professor, Formula, GTX
- Gram Lights — 57CR, 57DR, 57Xtreme
- Enkei — RPF1, NT03, PF01
- Aodhan — DS02, AH02, AFF7
- WedsSport — SA-72R, TC105X
