1997 Mazda Miata Wheels & Rims

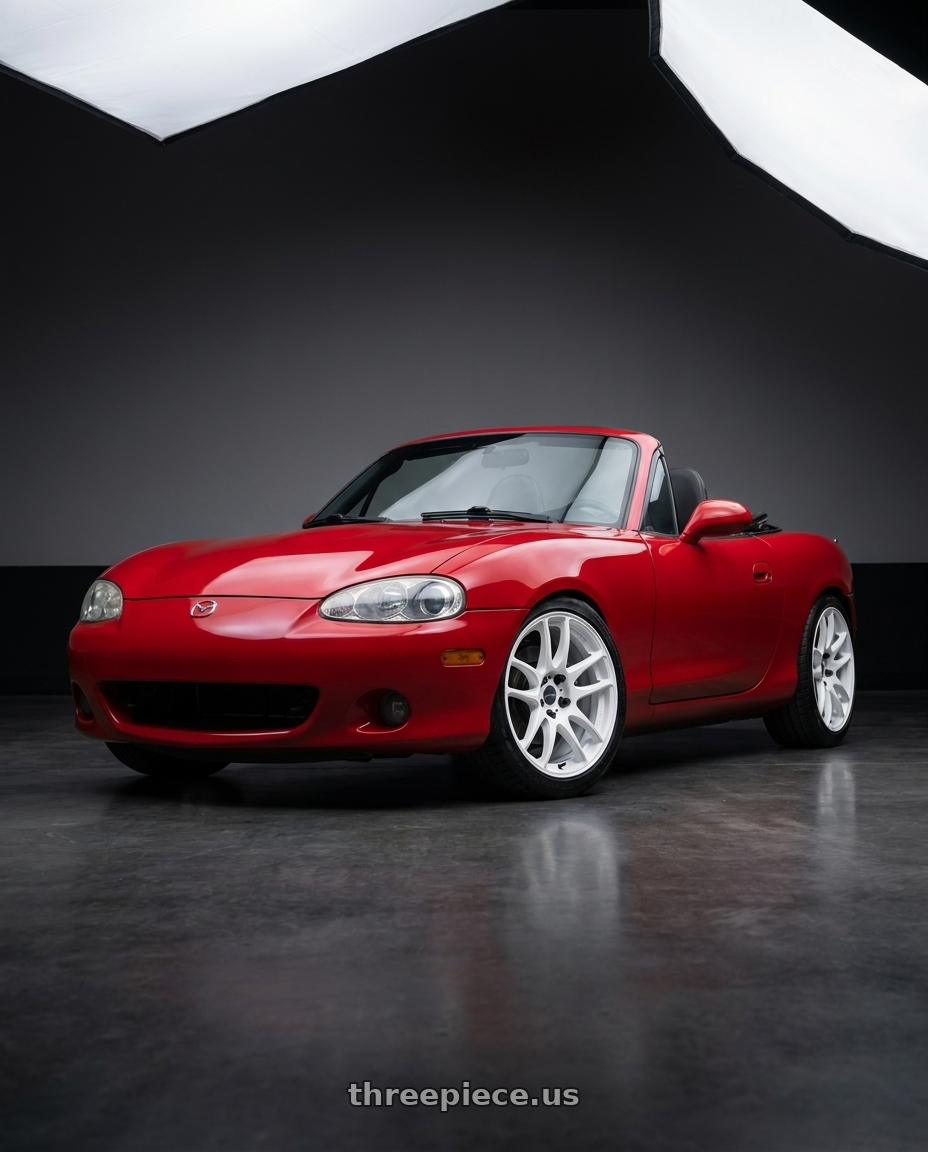

1997 Mazda Miata Wheel Gallery — See It On Your Car
Real Mazda Miata builds and AI-rendered fitment previews. Visualize any wheel on your Miata with our free wheel visualizer before you buy.
Shop Wheels for 1997 Mazda Miata
Showing 8 of 8+ wheels compatible with the 1997 Mazda Miata
The 1997 Mazda Miata Base, M Edition, and STO models roll on a 4x100 bolt pattern with a 54.1mm center bore. Your stock setup comes with 14x5.5 wheels at a 45mm offset. We verify every wheel to ensure it bolts on perfectly, and we ship free throughout the lower 48 states.
Finding the right wheel for your Miata opens up excellent options across multiple sizes and styles. Choose from 14 to 17-inch diameters with widths ranging from 5.5 to 7 inches, all compatible with your factory specifications. Top brands like Enkei, Work Wheels, Motegi Racing, and Heritage Wheel are in stock now at ThreePiece.us.
1997 Mazda Miata Wheel Fitment Guide — What Works & What to Avoid
Your 1997 Mazda Miata fastens wheels using a 4x100 bolt pattern. The stock setup runs 14x5.5 at a 45-millimeter offset. You can step up to 15-inch or 16-inch wheels in widths from 6 to 7 inches, or go as large as 17x7, giving you plenty of modern options while maintaining the original square fitment across all four corners.
Keep in mind that only the 4x100 bolt pattern will fit your Miata—no other patterns are compatible. The hub-centric bore measures 54.1 millimeters, so if your chosen wheel has a larger bore, use hub-centric rings to ensure a proper fit. Avoid wheels with aggressive negative offsets or excessive widths, as the tight suspension geometry makes the car susceptible to rubbing issues.
Every wheel we list bolts directly onto your Miata and ships free throughout the lower 48 states. We stock excellent options from Vors, Enkei, Work Wheels, Motegi Racing, and others—all verified for your application.
1997 Mazda Miata Wheel Fitment Specifications
The 4x100 bolt pattern determines which wheels physically bolt onto your car, while the 54.1mm center bore ensures a hub-centric fit. The factory equips this car with 14x5.5 wheels at a +45 offset.
Lug Type
nut
Thread Size
M12x1.5
Torque Spec
81 ft-lbs
TPMS
No
1997 Mazda Miata Compatible Wheel Sizes
| Wheel Size | Offset Range | Compatible Tires | Notes |
|---|---|---|---|
| 14x5.5 | +35 to +45 | 185/60R14 | — |
| 14x6 | +35 to +40 | 185/60R14 | — |
| 15x6 | +35 to +40 | 195/50R15, 195/55R15 | — |
| 15x6.5 | +35 to +40 | 195/50R15, 185/55R15 | — |
| 16x6.5 | +35 to +42 | 205/45R16 | — |
| 15x7 | +35 to +40 | 195/50R15 | — |
| 16x7 | +35 to +40 | 205/45R16 | — |
| 17x7 | +35 to +40 | 205/40R17 | — |
Best Wheel Brands for the Mazda Miata
- Work Wheels — Meister, Emotion, Equip, CR Kiwami
- Volk Racing — TE37, CE28, ZE40
- SSR — Professor, Formula, GTX
- Gram Lights — 57CR, 57DR, 57Xtreme
- Enkei — RPF1, NT03, PF01
- Aodhan — DS02, AH02, AFF7
- WedsSport — SA-72R, TC105X
Complete Your 1997 Mazda Miata Build
- Mazda Miata coilovers — pairs well with a wheel upgrade
- Mazda Miata exhaust systems — pairs well with a wheel upgrade
- Mazda Miata suspension — pairs well with a wheel upgrade
- Mazda Miata brakes — pairs well with a wheel upgrade
- Wheel & tire packages — pre-mounted, balanced, shipped ready to bolt on
- Installation accessories — hub rings, extended studs, TPMS kits, spacers
