2016 Lexus RC300 Wheels & Rims

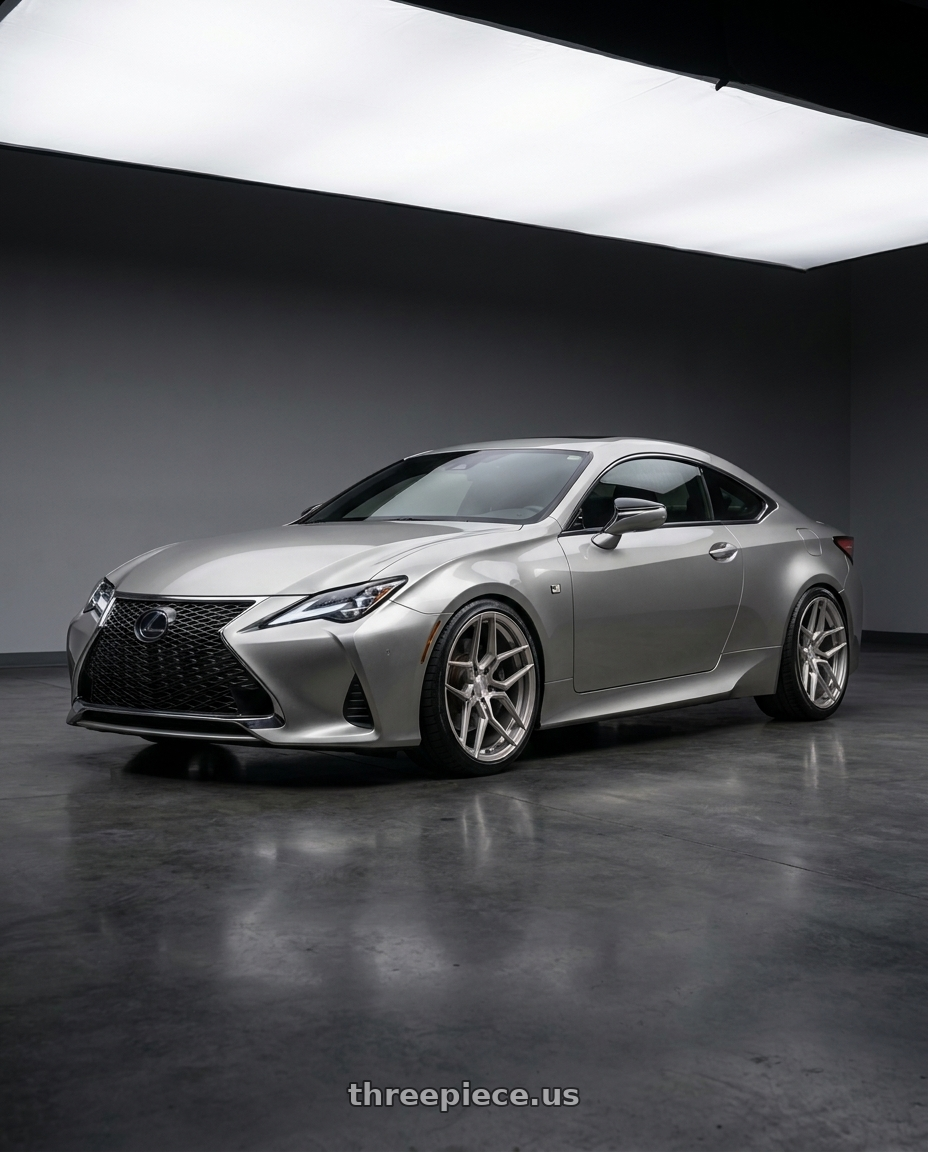

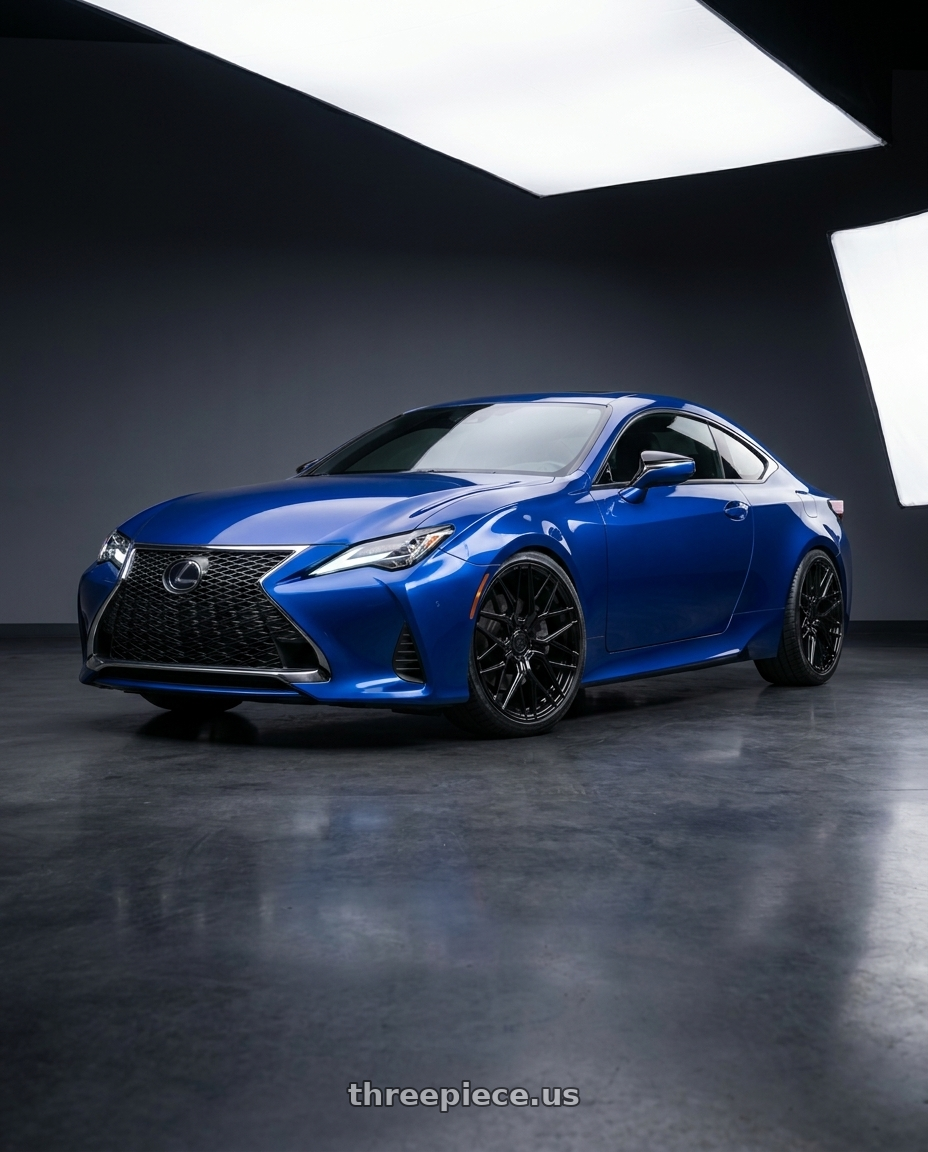

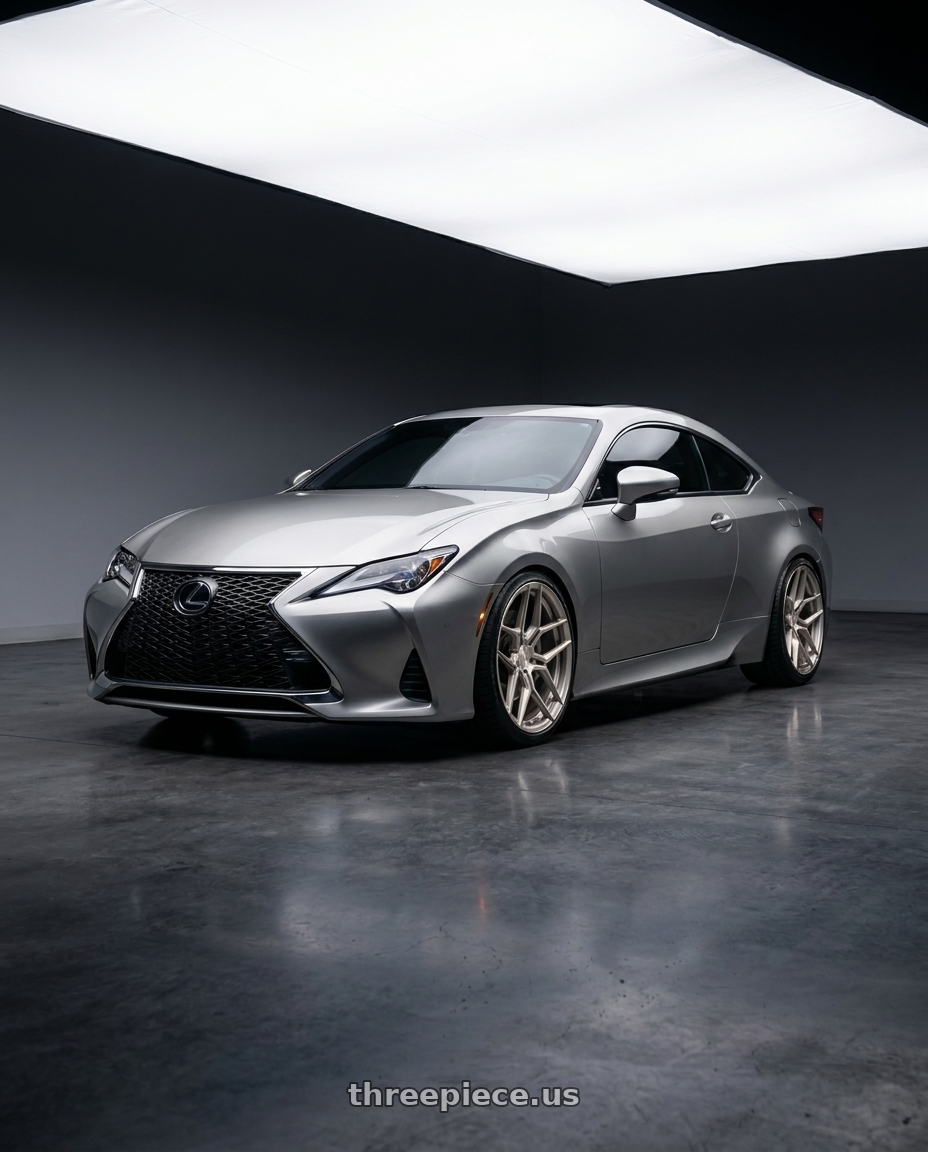

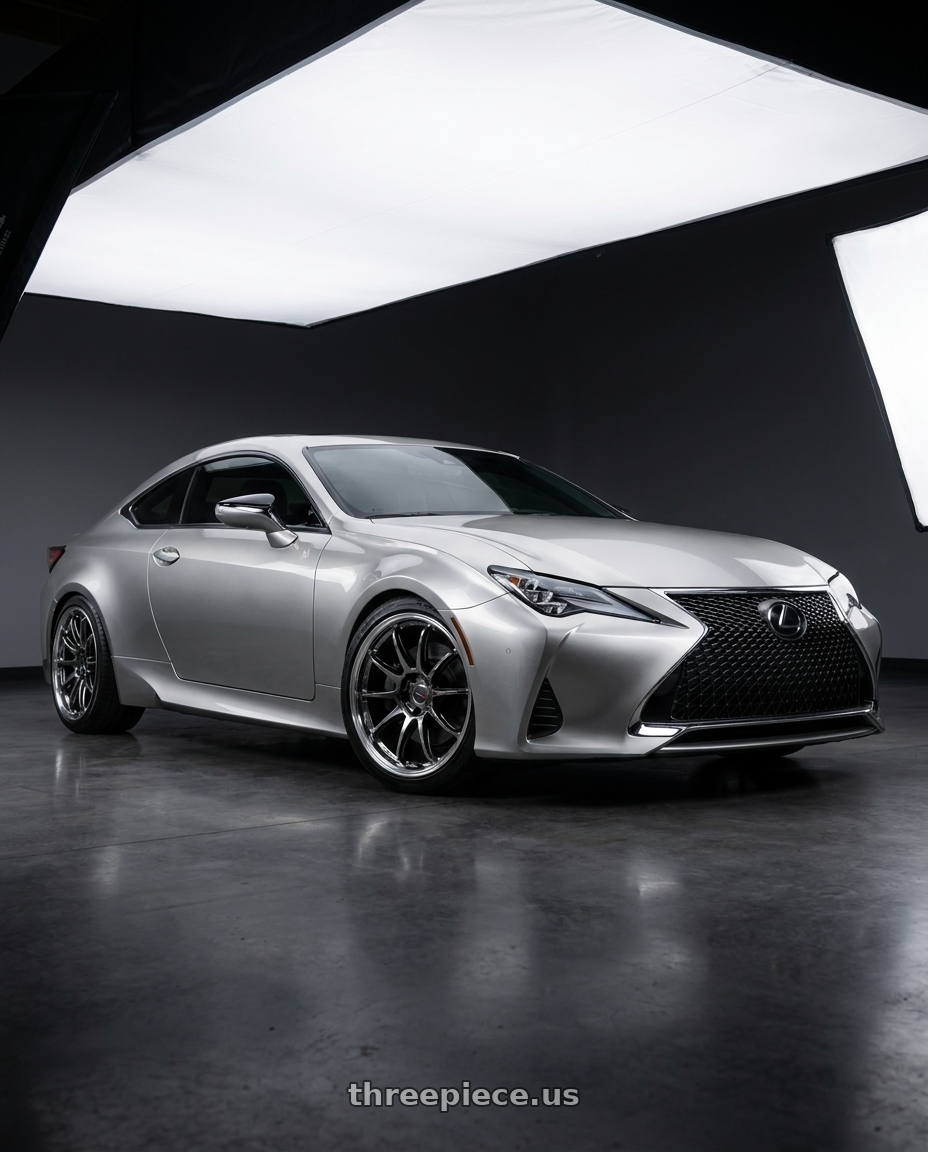

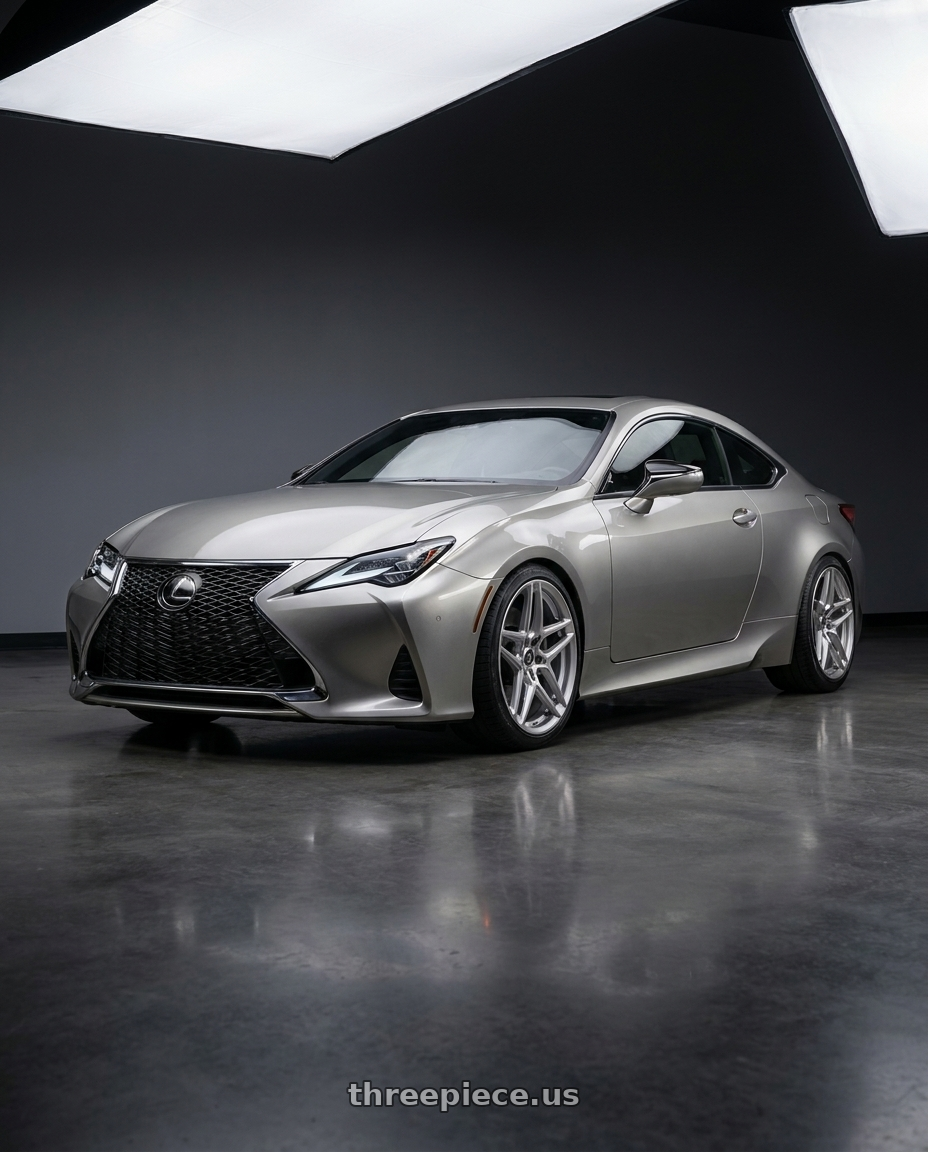

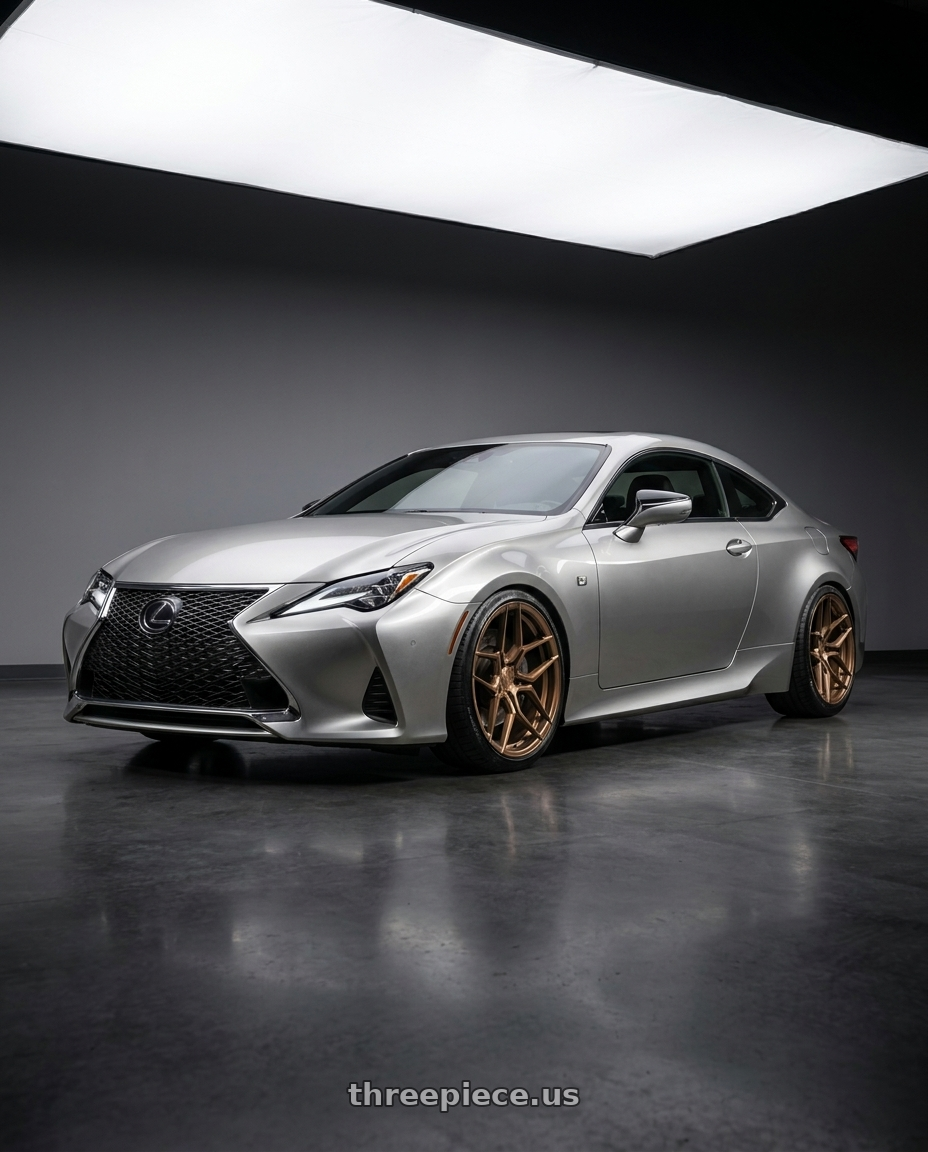

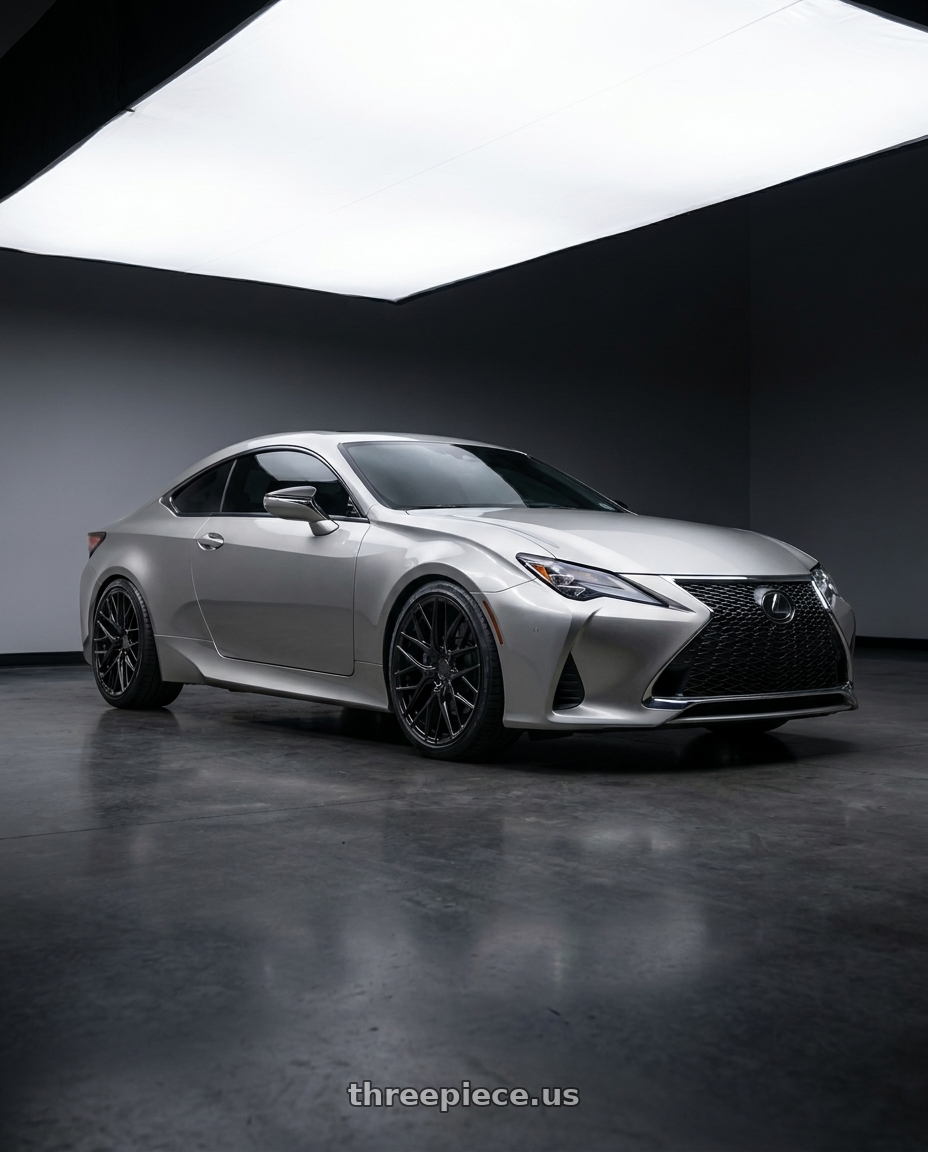

2016 Lexus RC300 Wheel Gallery — See It On Your Car
Real Lexus RC300 builds and AI-rendered fitment previews. Visualize any wheel on your RC300 with our free wheel visualizer before you buy.
Shop Wheels for 2016 Lexus RC300
Showing 8 of 8+ wheels compatible with the 2016 Lexus RC300
The 2016 Lexus RC300 Base and F Sport trims roll on eighteen-inch wheels with a five by one-fourteen-point-three bolt pattern. ThreePiece.us stocks premium aftermarket options from brands like BBS, Enkei, Work Wheels, and others, all verified to bolt directly onto your RC300 without modification. Every wheel we offer ships free to the lower 48 states.
Whether you prefer to stick with eighteen-inch sizing or step up to nineteen-inch wheels, we have multiple width and offset combinations ready to ship. Your RC300 accepts everything from conservative fitments to more aggressive setups, giving you genuine choice in how your car looks. All our inventory is tested for fitment accuracy before it leaves our warehouse.
2016 Lexus RC300 Wheel Fitment Guide — What Works & What to Avoid
The 2016 Lexus RC300 in Base and F Sport trims accepts wheels on a 5x114.3 bolt pattern. Your stock setup runs 18x8 with a 45mm offset. You can upgrade to larger diameters—19-inch options are available—or increase width at eighteen inches. Compatible widths span 18x8 through 18x10 and 19x8 through 19x10, all in square setups rather than staggered.
Your wheel's center bore must accommodate the RC300's 60.1mm hub. If you choose a wheel with a larger bore, use hub-centric rings to ensure a proper fit. Watch for the 5x114.3 bolt pattern; it's the only pattern that works here. Aggressive offsets or very wide wheels risk contact with the fender or suspension, so stay within the compatible size range to avoid rubbing.
Every wheel we stock for your RC300 bolts on straight and ships free to the lower 48 states. Brands like Aodhan, Work Wheels, BBS, and Enkei are in stock and ready to ship.
2016 Lexus RC300 Wheel Fitment Specifications
The 5x114.3 bolt pattern determines which wheels physically bolt onto your car, while the 60.1mm center bore ensures a hub-centric fit. The factory equips this car with 18x8 wheels at a +45 offset.
Lug Type
nut
Thread Size
M12x1.5
Torque Spec
81 ft-lbs
TPMS
Yes
2016 Lexus RC300 Compatible Wheel Sizes
| Wheel Size | Offset Range | Compatible Tires | Notes |
|---|---|---|---|
| 18x8 | +30 to +55 | 235/45R18, 225/45R18, 245/45R18 | — |
| 19x8 | +30 to +55 | 235/40R19, 225/40R19, 245/40R19 | — |
| 20x8 | +30 to +55 | 245/30R20, 225/35R20, 235/35R20 | — |
| 21x8 | +30 to +55 | 245/30R21 | — |
| 18x8.5 | +35 to +55 | 235/45R18, 225/45R18, 255/40R18 | — |
| 19x8.5 | +35 to +55 | 235/40R19, 255/35R19, 225/40R19 | — |
| 20x8.5 | +35 to +55 | 245/30R20, 255/30R20, 225/35R20 | — |
| 21x8.5 | +35 to +55 | 235/30R21, 245/30R21 | — |
| 18x9 | +40 to +45 | 235/45R18, 255/40R18, 245/45R18 | — |
| 19x9 | +40 to +45 | 235/40R19, 255/35R19, 225/40R19 | — |
| 20x9 | +40 to +45 | 245/30R20, 255/30R20, 225/35R20 | — |
| 21x9 | +40 to +45 | 255/25R21, 245/30R21 | — |
Best Wheel Brands for the Lexus RC300
- Work Wheels — Meister, Emotion, Equip, CR Kiwami
- Volk Racing — TE37, CE28, ZE40
- SSR — Professor, Formula, GTX
- Gram Lights — 57CR, 57DR, 57Xtreme
- Enkei — RPF1, NT03, PF01
- Aodhan — DS02, AH02, AFF7
- WedsSport — SA-72R, TC105X
