2009 Pontiac G8 Wheels & Rims

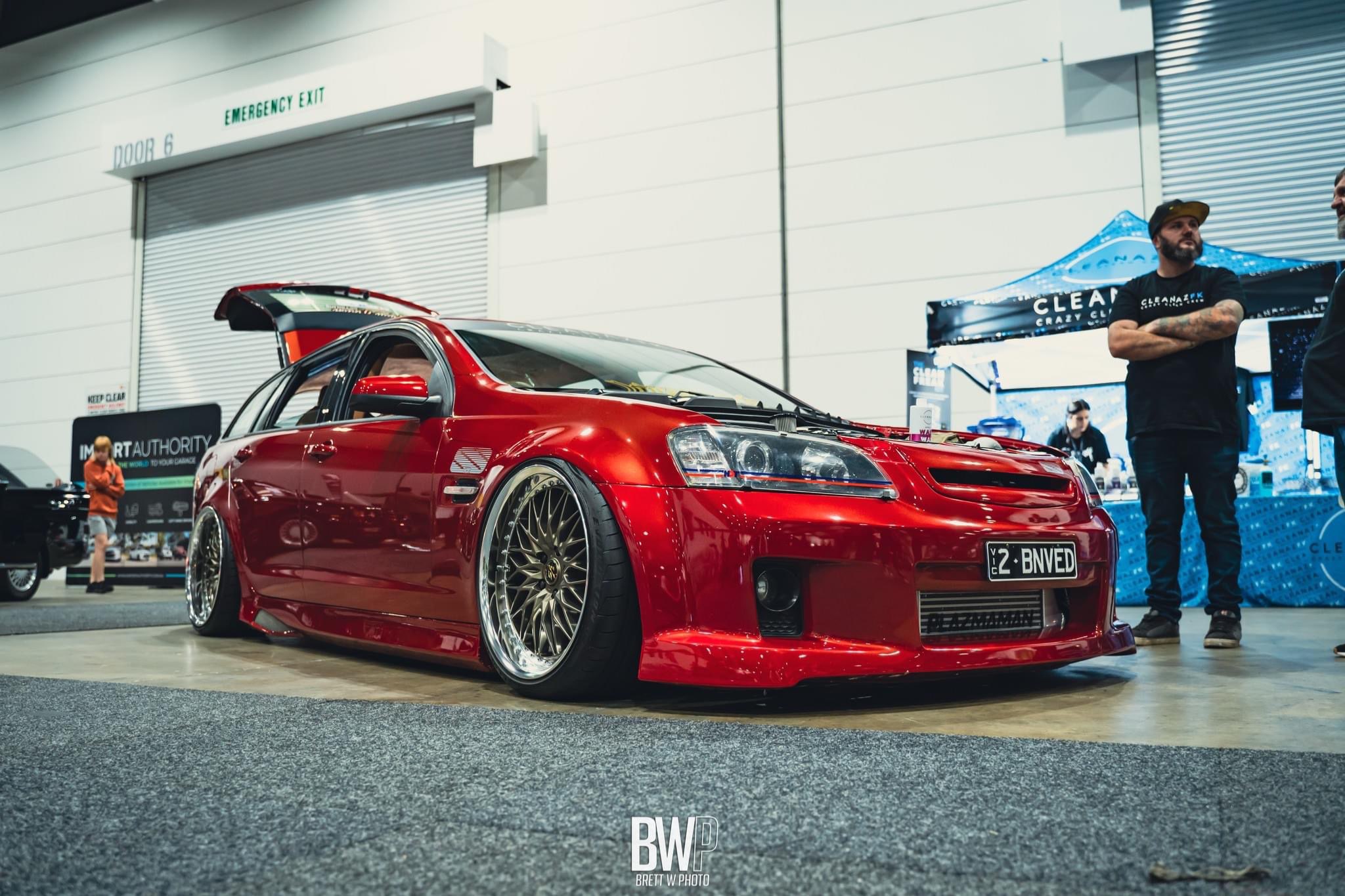

2009 Pontiac G8 Wheel Gallery — See It On Your Car
Real Pontiac G8 builds and AI-rendered fitment previews. Visualize any wheel on your G8 with our free wheel visualizer before you buy.
Shop Wheels for 2009 Pontiac G8
The 2009 Pontiac G8 Base, GT, and GXP models all share a 5x120 bolt pattern and roll on eighteen-inch by eight-inch factory wheels with a forty-eight millimeter offset. ThreePiece.us stocks premium options from Heritage Wheel, Work Wheels, OHM, Aodhan, Petrol, KATANA RACING, Niche 1PC, and Enkei that bolt right on, with every fitment verified for perfect compatibility.
Upgrading your G8 is straightforward—choose from seventeen to nineteen-inch sizes that match your driving style and aesthetic goals. We ship all wheels free to the lower forty-eight states, so you can refresh your ride without worrying about delivery costs or fitment guesswork.
2009 Pontiac G8 Wheel Fitment Guide — What Works & What to Avoid
Your 2009 Pontiac G8 uses a 5x120 bolt pattern shared across Base, GT, and GXP trims. The factory setup runs 18x8 wheels at 48mm offset. You can step up to 18-inch widths ranging from 7.5 to 9.5 inches, or go 19-inch with either 8 or 10-inch widths. The G8 runs square fitment, so matching offsets front and rear keeps things balanced and predictable.
Keep in mind that only the 5x120 bolt pattern will work on your G8—no other patterns fit. Your hub requires a 67.1mm center bore; use hub-centric rings if a wheel's bore exceeds that size. Pushing too wide or running overly aggressive offsets risks rubbing into the fender and suspension, so stay within the compatible sizes and moderate offset ranges we've verified.
Every wheel we list bolts directly onto your G8 and ships free across the lower 48 states. We stock options from Heritage Wheel, Work Wheels, OHM, Aodhan, Petrol, KATANA RACING, Niche 1PC, and Enkei, so you'll find quality and style to match your build.
2009 Pontiac G8 Wheel Fitment Specifications
The 5x120 bolt pattern determines which wheels physically bolt onto your vehicle, while the 67.1mm center bore ensures a hub-centric fit. The factory equips this vehicle with 18x8 wheels at a +48 offset.
Lug Type
nut
Thread Size
M14x1.5
Torque Spec
89 ft-lbs
TPMS
Yes
2009 Pontiac G8 Compatible Wheel Sizes
| Wheel Size | Offset Range | Compatible Tires | Notes |
|---|---|---|---|
| 18x7.5 | +30 to +46 | 245/45R18 | — |
| 17x8 | +30 to +46 | 245/50R17 | — |
| 18x8 | +35 to +48 | 245/45R18 | — |
| 19x8 | +35 to +48 | 245/40R19 | — |
| 20x8 | +35 to +43 | 245/35R20 | — |
| 18x8.5 | +35 to +45 | 245/45R18 | — |
| 19x8.5 | +35 to +45 | 245/40R19 | — |
| 20x8.5 | +35 to +43 | 245/35R20 | — |
