2005 Mercedes-Benz CLK320 Wheels & Rims

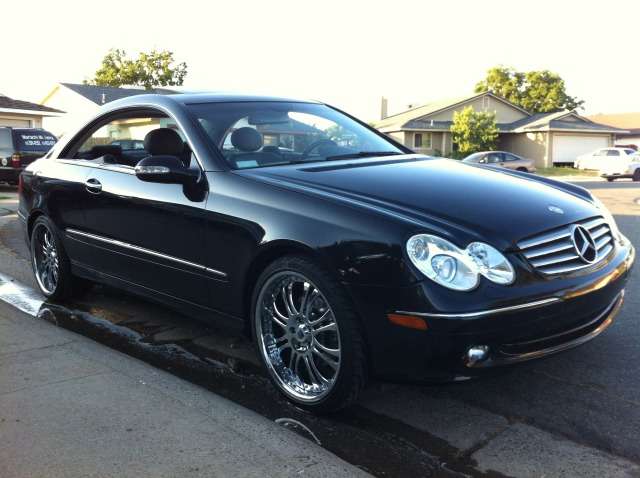

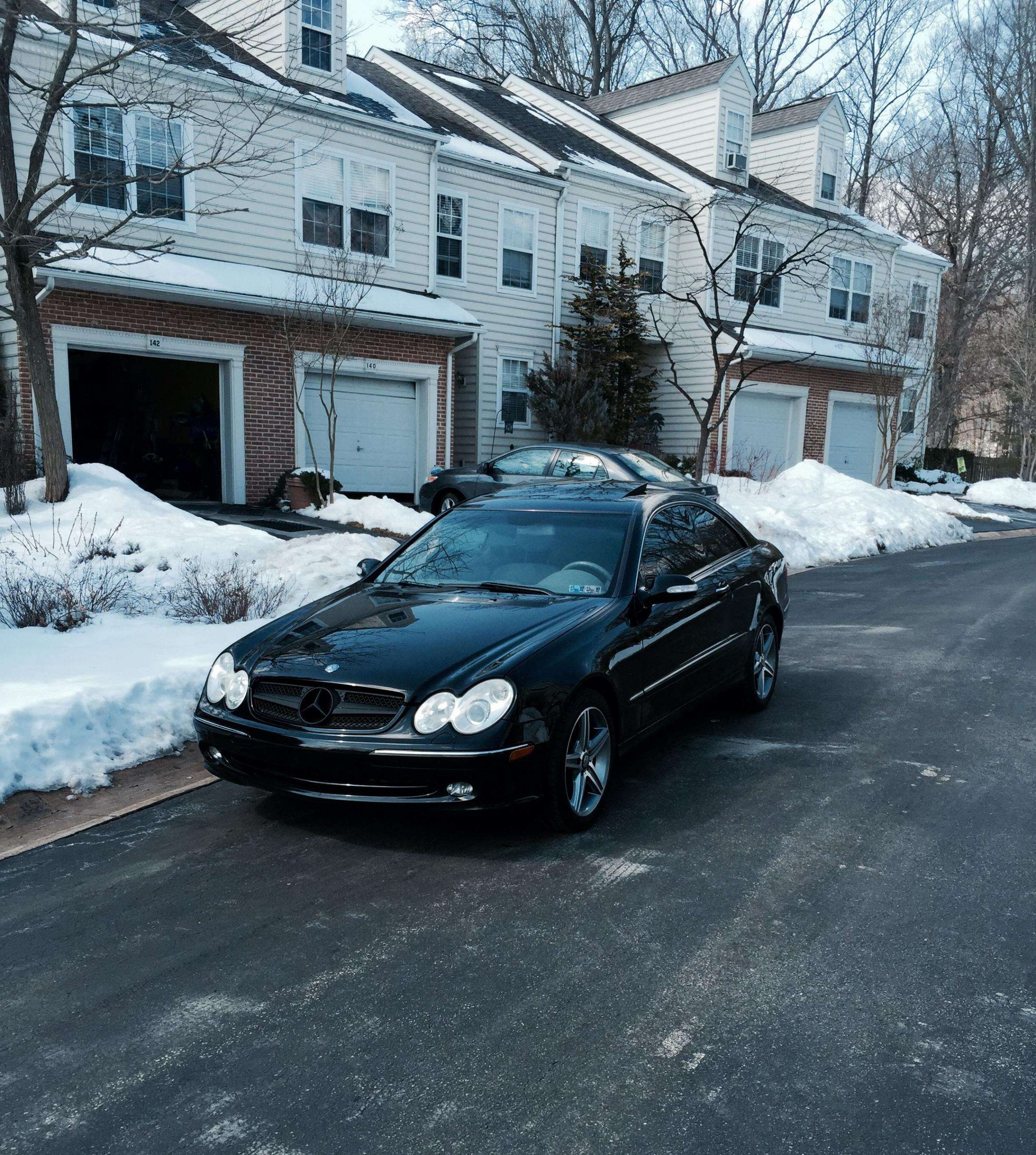

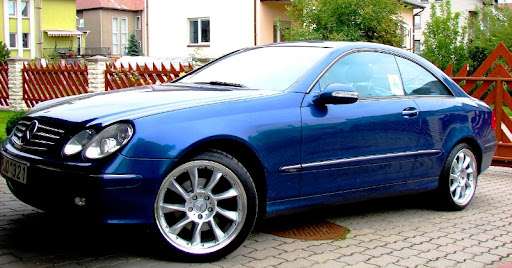

2005 Mercedes-Benz CLK320 Wheel Gallery — See It On Your Car
Real Mercedes-Benz CLK320 builds and AI-rendered fitment previews. Visualize any wheel on your CLK320 with our free wheel visualizer before you buy.
Shop Wheels for 2005 Mercedes-Benz CLK320
Showing 8 of 8+ wheels compatible with the 2005 Mercedes-Benz CLK320
The 2005 Mercedes-Benz CLK320 Base rides on a 5x112 bolt pattern with staggered fitment—16x7 wheels up front and 16x8 in back. ThreePiece.us stocks premium options from Heritage Wheel, Aodhan, Motegi Racing, Work Wheels, Niche 1PC, Petrol, Rotiform 1PC, and MRR that bolt right on without modification.
Your CLK can accommodate sizes ranging from 16-inch through 18-inch diameters, giving you flexibility across widths and styles. Every wheel we offer is verified to fit your Mercedes, and we ship free to the lower 48 states, making an upgrade simple and affordable.
2005 Mercedes-Benz CLK320 Wheel Fitment Guide — What Works & What to Avoid
Your 2005 Mercedes-Benz CLK320 uses a 5x112 bolt pattern with a 66.6mm hub bore. The factory setup runs 16x7 offset 37 front and 16x8 offset 30 rear in staggered configuration. You can upgrade to 17-inch or 18-inch wheels while maintaining the staggered setup, choosing from sizes like 17x7.5 front with 17x8.5 rear, or 18x8 front paired with 18x8.5 rear, among other compatible combinations.
Only wheels with a 5x112 bolt pattern will fit this car. Since your vehicle requires hub-centric mounting, use hub-centric rings if your chosen wheel's center bore exceeds 66.6mm. Aggressive offsets or very wide wheels risk contact with the fender or suspension components, so stay within the range of proven fitments we've verified for your model.
Every wheel listed here is confirmed to bolt directly onto your CLK320 and ships free throughout the lower 48 states. We stock Heritage Wheel, Aodhan, Motegi Racing, Work Wheels, Niche 1PC, Petrol, Rotiform 1PC, and MRR—all ready to ship.
2005 Mercedes-Benz CLK320 Wheel Fitment Specifications
The 5x112 bolt pattern determines which wheels physically bolt onto your car, while the 66.6mm center bore ensures a hub-centric fit. This car runs a factory staggered setup: 16x7 +37 front and 16x8 +30 rear.
Lug Type
bolt
Thread Size
M12x1.5
Torque Spec
85 ft-lbs
TPMS
Yes
2005 Mercedes-Benz CLK320 Compatible Wheel Sizes — Front Axle
| Wheel Size | Offset Range | Compatible Tires | Notes |
|---|---|---|---|
| 16x7 | +27 to +37 | 205/55R16, 225/50R16 | — |
| 16x7.5 | +27 to +37 | 205/55R16, 225/50R16, 245/45R16 | — |
| 17x7.5 | +27 to +37 | 225/45R17, 215/45R17, 205/50R17 | — |
| 18x7.5 | +27 to +37 | 225/40R18 | — |
| 16x8 | +30 to +37 | 225/50R16, 245/45R16 | — |
| 17x8 | +30 to +37 | 225/45R17, 215/45R17, 235/40R17 | — |
| 18x8 | +30 to +37 | 225/40R18, 245/35R18 | — |
| 19x8 | +30 to +35 | 225/35R19, 235/35R19 | — |
| 17x8.5 | +30 to +36 | 225/45R17, 215/45R17, 235/40R17 | — |
| 18x8.5 | +30 to +37 | 225/40R18, 245/35R18 | — |
| 19x8.5 | +30 to +37 | 225/35R19, 235/35R19 | — |
| 20x8.5 | +30 to +35 | 235/25R20 | 4. Check tyre fitment suitability |
2005 Mercedes-Benz CLK320 Compatible Wheel Sizes — Rear Axle
| Wheel Size | Offset Range | Compatible Tires | Notes |
|---|---|---|---|
| 16x8 | +30 to +37 | 245/45R16, 225/50R16 | — |
| 17x8.5 | +27 to +36 | 235/40R17, 245/40R17 | — |
| 18x8.5 | +27 to +37 | 255/35R18, 245/35R18 | — |
| 19x8.5 | +27 to +36 | 255/30R19, 265/30R19 | — |
| 17x9 | +27 to +36 | 245/40R17, 255/40R17 | — |
| 18x9 | +27 to +37 | 255/35R18, 245/35R18 | — |
| 19x9 | +27 to +35 | 255/30R19, 265/30R19 | — |
| 18x9.5 | +27 to +35 | 255/35R18 | — |
| 19x9.5 | +27 to +35 | 255/30R19, 265/30R19 | — |
Best Wheel Brands for the Mercedes-Benz CLK320
- BBS — LM, RS, FI, CI-R
- Volk Racing — TE37, ZE40
- Work Wheels — Meister, Emotion
- TSW — Bathurst, Nurburgring
- Rotiform — FLG, OZR, BUC
- Enkei — RPF1, TS-V
